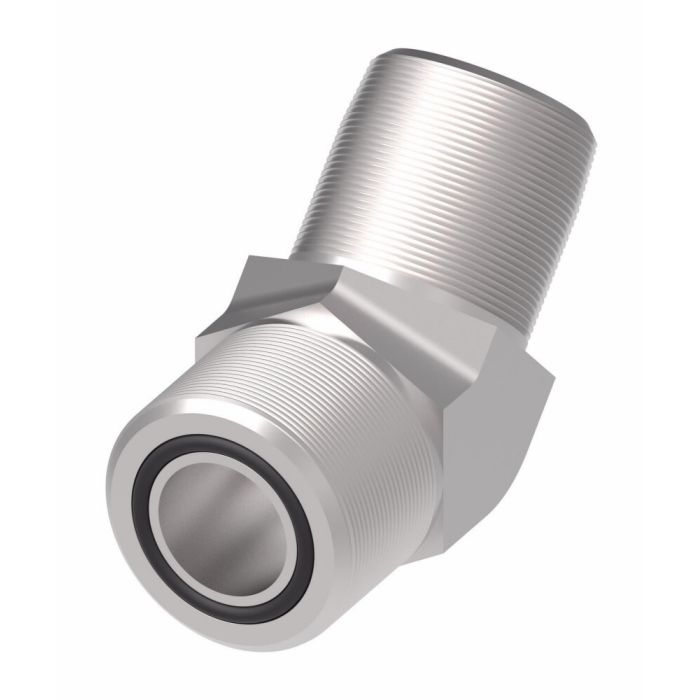

main product photo

Aeroquip Adapter. zinc plated steel. 45 degree elbow. 11/16-

Ask A Question

Description & Features

Designed for demanding industrial environments, this Eaton Aeroquip 45-degree elbow adapter connects an 11/16" ORS male end to a 3/8" NPTF male end in carbon steel with Dura-Kote zinc plating for strong corrosion resistance. The angled configuration supports flexible routing in tight installations where straight adapters are impractical.

Rated for a minimum working temperature of -65°F, this adapter suits applications in marine and military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling environments. It exceeds SAE pressure standards, and the Aeroquip Adapter. zinc plated steel. 45 degree elbow. 11/16- is part of the FF2093T series, which offers hundreds of available styles to accommodate varied system configurations.

SKU: FF2093T0606S

Supplier Part Number (MPN): FF2093T0606S

Alternate Part Numbers: C1EC94

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male ORFS
Connection Type 2
Male NPTF
Dimension Standards
SAE 520302/J1453
Drop Dimensions
1.04 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Series
FF2093T Series
Thread Size
11/16-16 x 3/8-18
Tube OD
3/8 in

Product Questions & Answers (3)

Question by: Scott L on Sep 3, 2025, 8:28 PM
What's the angle and thread setup on this adapter, need to know if it'll work for rerouting a hydraulic line where a straight fitting just ain't gonna cut it.
Answer by: Customer Support on Sep 5, 2025, 7:11 AM
You're working with a 45-degree elbow configuration here. One end is an 11/16" ORS male connection and the other is a 3/8" NPTF male. That angled design is exactly what you'd reach for when a straight adapter puts you in a bind with tight routing or clearance issues in the system.
Question by: Brent W on Jun 30, 2025, 5:13 PM
So, this is a 45 degree angle, right? Just making sure before I order it.
Answer by: Customer Support on Jul 2, 2025, 6:16 AM
That's correct, this Aeroquip adapter features a 45-degree elbow, making it suitable for connections where a straight adapter wouldn't work.
Question by: Daryl R on Aug 31, 2025, 5:07 PM
got a tight spot on a hydraulic line. is this the 45° elbow that goes 11/16 ORS male over to 3/8 NPTF male?
Answer by: Customer Support on Sep 2, 2025, 6:09 AM
For that kind of offset, this adapter is a 45 degree elbow with an 11/16 inch ORS male on one end and a 3/8 inch NPTF male on the other, both male ends.
