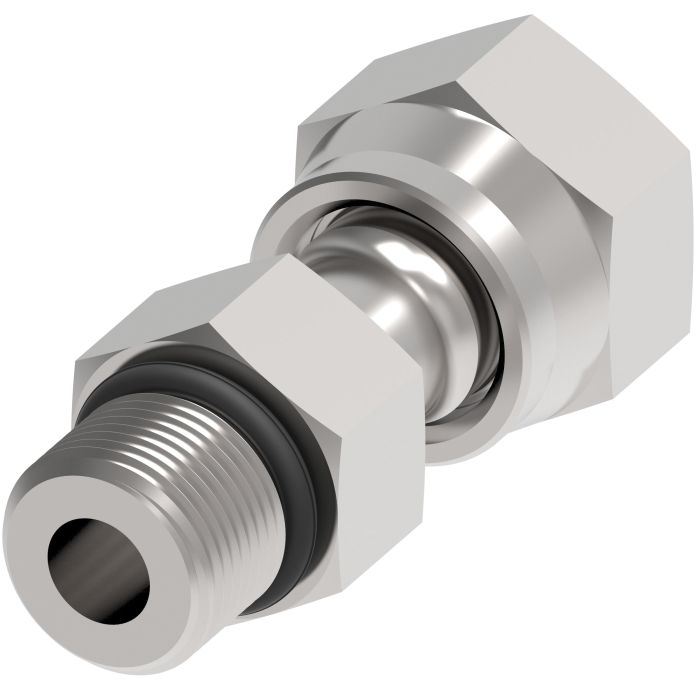

Designed for demanding industrial environments, this carbon steel straight adapter connects an ORS female swivel end (11/16 in.) to an SAE O-ring Boss male end (9/16 in.), providing a reliable, leak-resistant hydraulic connection. The Aeroquip ORS Female Swivel/SAE ORing BOS adapter is built to perform at pressures exceeding SAE standards, making it well-suited for applications where standard-rated fittings may fall short.
Aeroquip's Dura-Kote plating provides strong corrosion resistance, extending service life in harsh conditions. Certified to SAE 520181, this adapter is appropriate for use across marine and military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications. A minimum working temperature of -40° supports cold-environment use, and the broad range of available styles in the Aeroquip FF2130T Series allows for flexible system configuration.
SKU: FF2130T0606S
Supplier Part Number (MPN): FF2130T0606S
|
Alternate Part Numbers
MINO-00015X16265
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE 520181
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
0.69
|
End Size 2
0.56
|
End Type 1
ORS
|
End Type 2
SAE ORB
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Straight Adapters
|
Item Type
ORS Female / SAE ORB Male Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
0.69
|
Sub Brand
None
|
Supplier Part Number
FF2130T0606S
|
Product Weight
0.05 lbs
|
