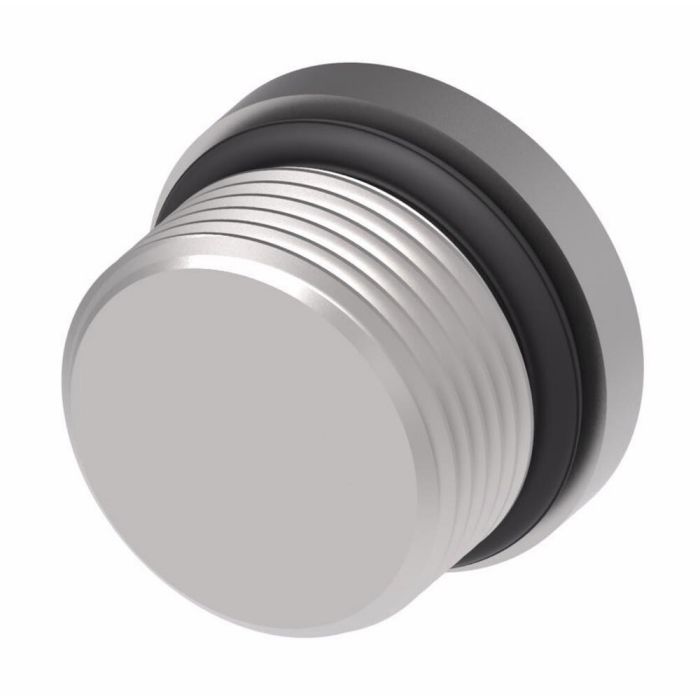

main product photo

Danfoss / Eaton Hose Adapter (Male ORB) Hex Socket

Ask A Question

Description & Features

Designed for demanding industrial environments, this carbon steel straight adapter handles SAE Male O-ring Boss connections with a hex socket drive configuration. The Danfoss / Eaton Hose Adapter (Male ORB) Hex Socket is built to SAE 090109B certification standards and is rated for operating pressures above standard SAE thresholds, making it well-suited for high-demand hydraulic circuit applications.

Dura-Kote plating provides corrosion resistance suited to harsh service conditions, including marine, military, offshore drilling, chemical processing, pulp and paper, and food and beverage processing environments. The 5/16-inch male SAE ORB end connects reliably within systems where fitting integrity under pressure is critical. With hundreds of available styles in the Aeroquip product family, this adapter fits within a broad range of configuration requirements. Minimum working temperature is rated to -40°, supporting cold-weather and cryogenic-adjacent applications.

SKU: FF2138-02S

Supplier Part Number (MPN): FF2138-02S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/8 in
Connection Type
Male SAE ORB
Connection Type 1
Male SAE ORB
Dimension Standards
SAE 090109B/J1926
Dimensions
0.4 in L x 0.44 in W
Finish
Dura-Kote™
Fitting Type
Plug
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF2138 Series
Thread Size
5/16-24

Similar Products

Model Number Connection Size 1 Thread Size Hex Size Price Action
Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-12S Steel ORB Socket Hex Plug

3/4 in

1-1/16-12

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-10S Steel ORB Socket Hex Plug

5/8 in

7/8-14

3/8 in

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-16S Steel ORB Socket Hex Plug

1 in

1-5/16-12

0.63 in

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-04S Steel ORB Socket Hex Plug

1/4 in

7/16-20

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-06S Steel ORB Socket Hex Plug

3/8 in

9/16-18

1/4 in

Steel Adapter, 3/8-24 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-03S Steel ORB Socket Hex Plug

3/16 in

3/8-24

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) Socket Hex Plug

FF2138-08S Steel ORB Socket Hex Plug

1/2 in

3/4-16

0.32 in

Danfoss / Eaton Hose Adapter (Male ORB) Hex Socket

FF2138-05S

5/16 in

1/2-20

Danfoss / Eaton Hose Adapter (Male ORB) Hex Socket

FF2138-20S

1-1/4 in

1-5/8-12

3/4 in

Product Questions & Answers (1)

Question by: Clint O on Dec 26, 2025, 10:46 AM
Can this adapter hold up in a marine environment without corroding?
Answer by: Customer Support on Dec 28, 2025, 7:11 AM
Dura-Kote plating provides corrosion resistance, making this adapter well-suited for harsh service conditions, including marine environments.
