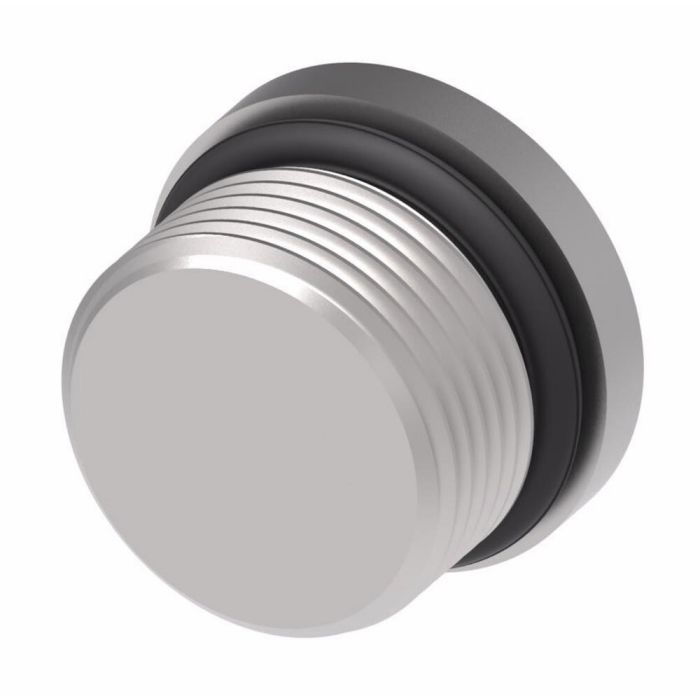

Danfoss / Eaton Hose Adapter (Male ORB) Hex Socket

Description & Features

Constructed from carbon steel with Dura-Kote plating, this straight adapter is built to resist corrosion in demanding industrial environments. The Danfoss / Eaton Hose Adapter (Male ORB) Hex Socket features a Male O-Ring Boss (ORB) primary end and an ORS secondary end, with a hex socket drive for secure installation in confined or high-torque applications.

Rated to SAE standard 090109B and engineered to exceed standard SAE pressure thresholds, this adapter is well-suited for use in marine and military systems, chemical processing, pulp and paper manufacturing, food and beverage processing, and offshore drilling. A broad range of compatible styles supports design flexibility across varied hydraulic circuit configurations. The minimum working temperature of -40° makes it a reliable choice for cold-climate or cryogenic-adjacent service conditions.

SKU: FF2138-20S

Supplier Part Number (MPN): FF2138-20S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1-1/4 in	Connection Type Male SAE ORB	Connection Type 1 Male SAE ORB	Dimension Standards SAE 090109B/J1926	Dimensions 0.77 in L x 1.88 in W	Finish Dura-Kote™	Fitting Type Plug	Hex Size 3/4 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF2138 Series	Thread Size 1-5/8-12

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
FF2138-12S Steel ORB Socket Hex Plug	3/4 in	1-1/16-12
FF2138-10S Steel ORB Socket Hex Plug	5/8 in	7/8-14	3/8 in
FF2138-16S Steel ORB Socket Hex Plug	1 in	1-5/16-12	0.63 in
FF2138-04S Steel ORB Socket Hex Plug	1/4 in	7/16-20
FF2138-06S Steel ORB Socket Hex Plug	3/8 in	9/16-18	1/4 in
FF2138-03S Steel ORB Socket Hex Plug	3/16 in	3/8-24
FF2138-08S Steel ORB Socket Hex Plug	1/2 in	3/4-16	0.32 in
FF2138-02S	1/8 in	5/16-24
FF2138-05S	5/16 in	1/2-20
