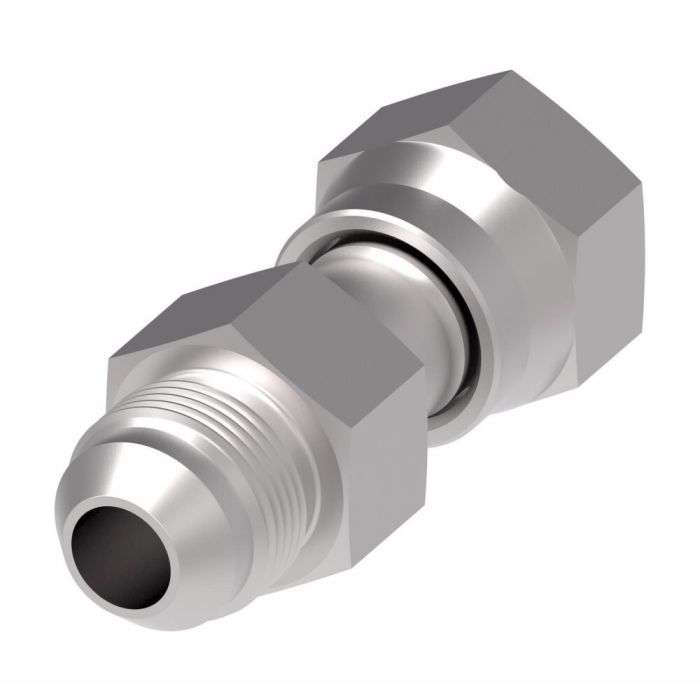

Danfoss / Eaton Adapter ORS

Ask A Question

Description & Features

Designed for straight-connection applications across demanding industries, the Danfoss / Eaton Adapter ORS features an ORS female swivel on one end and an SAE 37° male flare on the other, making it well-suited for marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper environments.

Constructed from carbon steel with Dura-Kote plating, this adapter offers corrosion resistance appropriate for harsh service conditions. It is rated for operating pressures above standard SAE specifications and carries a minimum working temperature of -40°F, supporting reliable performance across a wide range of operating environments.

Part of the Eaton Aeroquip FF2209T series, this straight adapter is one of hundreds of available configurations, allowing flexibility when specifying connections within complex hydraulic assemblies. The 1.5-inch hex size and 1.63-inch width provide reference points for tooling and installation clearance planning.

SKU: FF2209T1616S

Supplier Part Number (MPN): FF2209T1616S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Male JIC
Connection Type 1
Female ORFS Swivel
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J1453/J514
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF2209T Series
Thread Size
1-7/16-12, 1-5/16-12

Product Questions & Answers (1)

Question by: Bobby F on Dec 20, 2025, 5:42 PM
What kind of connection ends does this adapter have, and would it work for a straight-line hookup between ORS and SAE flare fittings?
Answer by: Customer Support on Dec 22, 2025, 2:21 PM
One end is an ORS female swivel and the other is an SAE 37° male flare, so yeah, that's exactly what it's built for. Straight-connection applications where those two fitting types need to meet up. No angled body, no offset, just a clean inline adapter between the two standards.
