DANFOSS / EATON ADAPTER

Description & Features

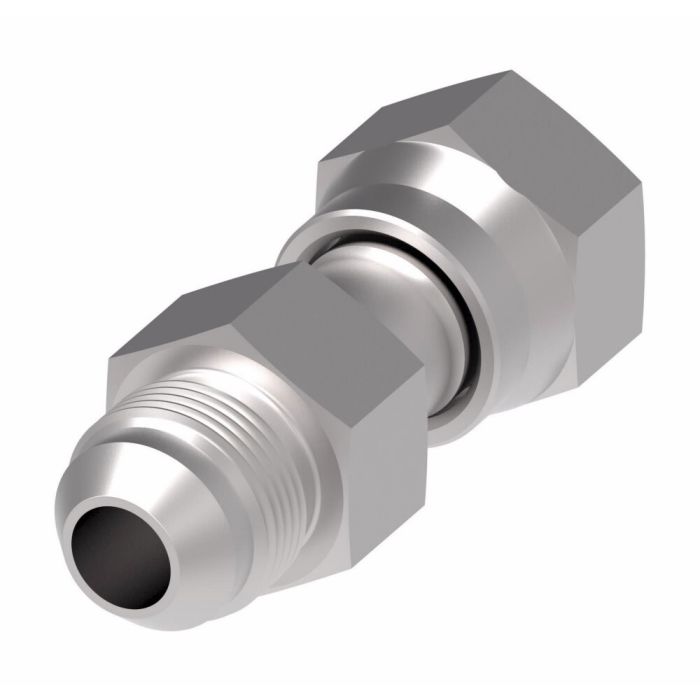

This carbon steel straight adapter is suitable for use in marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications. The DANFOSS / EATON ADAPTER features Dura-Kote plating for superior corrosion resistance and design flexibility.

This adapter has a female ORS end and a male SAE 37° end. It is designed for higher operating pressures above SAE standards. It has a minimum working temperature of -40 degrees. The hex size 2 is 1.625.

SKU: FF2209T2016S

Supplier Part Number (MPN): FF2209T2016S

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Male JIC	Connection Type 1 Female ORFS Swivel	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J1453/J514	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 1-5/8	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF2209T Series	Thread Size 1-11/16-12, 1-5/16-12

Product Questions & Answers (1)

Question by: Kirk P on Mar 29, 2026, 3:47 PM

This here adapter, is it gonna hold up if it gets some chemicals splashed on it?

Answer by: Customer Support on Mar 30, 2026, 5:04 PM

Dura-Kote plating gives this adapter superior corrosion resistance, so it's well-suited for chemical processing environments.
