DANFOSS / EATON ADPTRS/TUBE FTGS - CO

Ask A Question

Description & Features

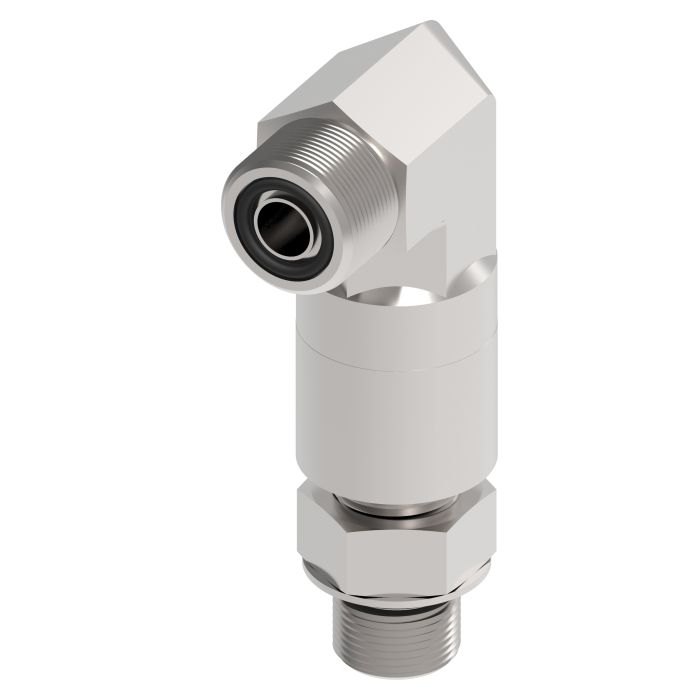

The Eaton Aeroquip ORS Male/SAE ORB Male 90° Elbow Adapter is engineered for demanding industrial applications such as marine, military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling. Constructed from durable carbon steel, this adapter is designed to withstand harsh environments and offers superior resistance to corrosion thanks to its Dura-Kote plating. Operating at pressures higher than SAE standards, it provides reliable performance where it matters most.

This elbow adapter features a 0.8125-inch ORS male end and a 0.75-inch SAE ORB male end, allowing for versatile connections in various systems. The Eaton Aeroquip brand ensures design flexibility with a wide range of styles available. Certified under SAE J1453, this fitting meets rigorous quality and safety standards, offering peace of mind for industrial applications.

SKU: FF2227T0808S

Supplier Part Number (MPN): FF2227T0808S

Alternate Part Numbers: C1EC98

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE 521520/J1453/J1926/520801
Drop Dimensions
2.95 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
0.94 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FF2227T Series
Thread Size
13/16-16 x 3/4-16

Product Questions & Answers (1)

Question by: Ralph E on Oct 6, 2025, 1:30 PM
got a hose end that’s ORS male, and the port on my block is SAE ORB female. is this the 90 degree adapter that ties those together?
Answer by: Customer Support on Oct 8, 2025, 9:01 AM
For tying an ORS male connection to an SAE ORB male connection with a 90 degree turn, that’s exactly what this fitting is. It’s an Eaton Aeroquip ORS Male to SAE ORB Male 90° elbow, with a 0.8125 in ORS male end and a 0.75 in SAE ORB male end.
