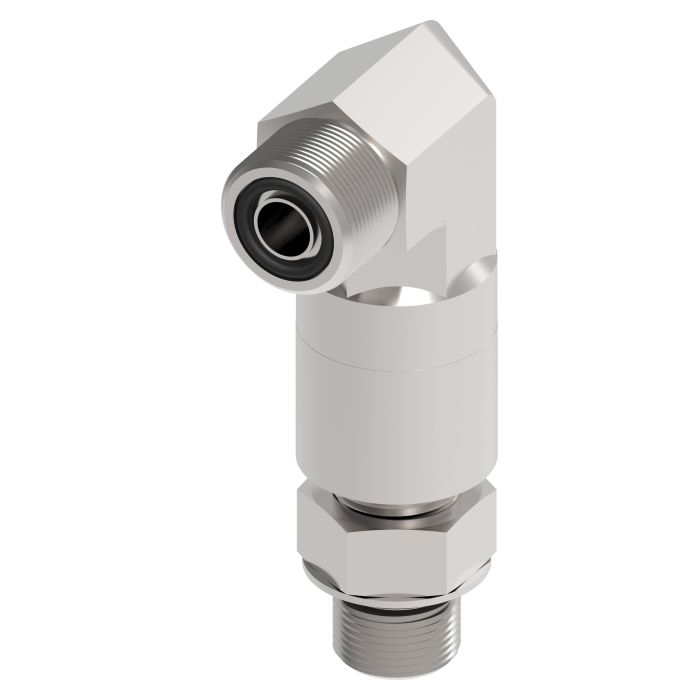

This carbon steel 90° elbow adapter is part of the DANFOSS / EATON ORS ADP 10 ORS series. Featuring Dura-Kote plating, it offers superior corrosion resistance. Design provides flexibility with a wide range of styles to choose from. It is suitable for use in marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications.
This ORS Male/SAE ORB Male 90° elbow adapter is SAE J1453 certified and designed to withstand higher operating pressures above SAE standards. It has a minimum working temperature of -65°F. The end 1 connection is a 1" ORS male, while end 2 features a 0.875" SAE ORB male connection. The hex size 2 is 1.06".
SKU: FF2227T1010S
Supplier Part Number (MPN): FF2227T1010S
Alternate Part Numbers: C1EC99
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1EC99, Alternate Part Number MINO-00925X13182
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE J1453
Drop Dimension
3.51
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
1
End Size 2
0.88
End Type 1
ORS
End Type 2
SAE ORB
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
1.06
ICC
Elbow Adapters
Item Type
ORS Male/SAE ORB Male 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.06
Sub Brand
None
Supplier Part Number
FF2227T1010S
Product Weight
0.92 lbs
Product Questions & Answers (1)
Question by: Brett Y on Jan 27, 2026, 8:59 AM
Is this adapter okay for use with offshore drilling equipment?
Answer by: Customer Support on Jan 28, 2026, 7:48 PM
This carbon steel elbow adapter is definitely suitable for offshore drilling applications, as well as marine, military, chemical processing, pulp and paper, and food and beverage environments.
