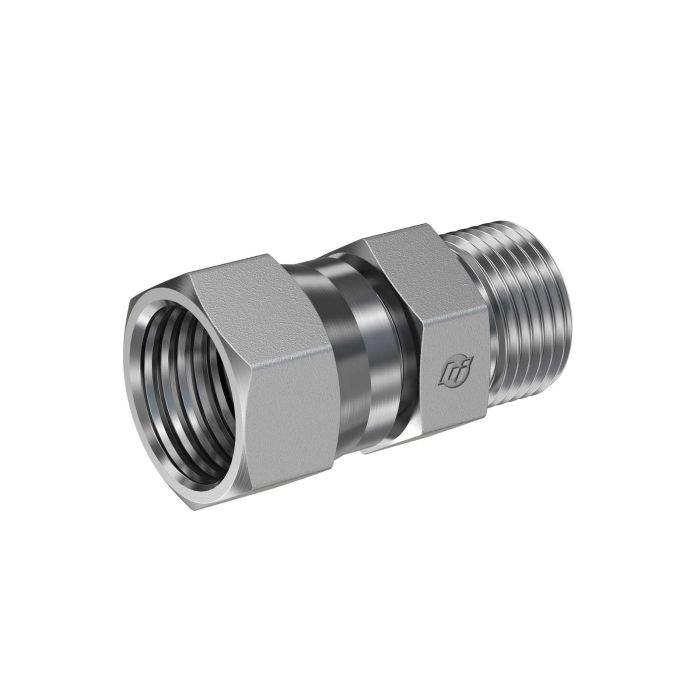

16FFS-08MFS STRAIGHT

Ask A Question

Description & Features

The 16FFS-08MFS Straight adapter by Brennan Industries Inc exemplifies reliability and performance. This adapter is meticulously engineered to provide a seamless connection in various industrial systems.

Crafted with precision it ensures a secure and robust joint aiding in the maintenance of system integrity under diverse operational conditions. It is designed without an adjustable end enhancing its robustness and reducing potential points of failure.

Constructed using high-quality materials this straight adapter is built to endure challenging industrial environments. The absence of additional components like batteries blades or calibrated elements emphasizes its straightforward and effective design.

Engineered for industrial application this connector does not require thread sealant or a check valve reflecting its simplistic yet sturdy design. It is not color-coded which maintains a uniform appearance across various installations. Additionally this part is neither machine mountable nor mandrel required streamlining installation processes.

Supplier Part Number: FS2406-16-08

Specifications

Brand
Brennan Industries
Connection Size 1
1 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Male ORFS
Connection Type 1
Female SAE ORFS Swivel
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J515
Dimensions
1.68 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-5/8
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2406 Series
Thread Size
1-7/16-12 x 13/16-16

Product Questions & Answers (3)

Question by: Hugh O on May 30, 2025, 3:33 PM
got a straight adapter here with no adjustable end, is that normal for this 16FFS-08MFS part?
Answer by: Customer Support on Jun 1, 2025, 1:22 PM
Built as a straight adapter with no adjustable end, it keeps the connection simple and sturdy and cuts down on extra points that can loosen up or fail.
Question by: Phil R on Mar 6, 2026, 6:12 PM
Does this adapter need any thread sealant when you're putting it together, or does it just go in dry?
Answer by: Customer Support on Mar 8, 2026, 6:52 AM
No sealant required on this one. The 16FFS-08MFS is engineered so the connection holds without it, which keeps the install straightforward and cuts out an extra step.
Question by: Rod B on Oct 22, 2025, 10:10 AM
Will this here adapter hold up okay in a hydraulic system that sees some pretty rough use?
Answer by: Customer Support on Oct 24, 2025, 6:07 AM
Constructed using high-quality materials, this straight adapter is built to endure challenging industrial environments, ensuring a robust and reliable connection.
