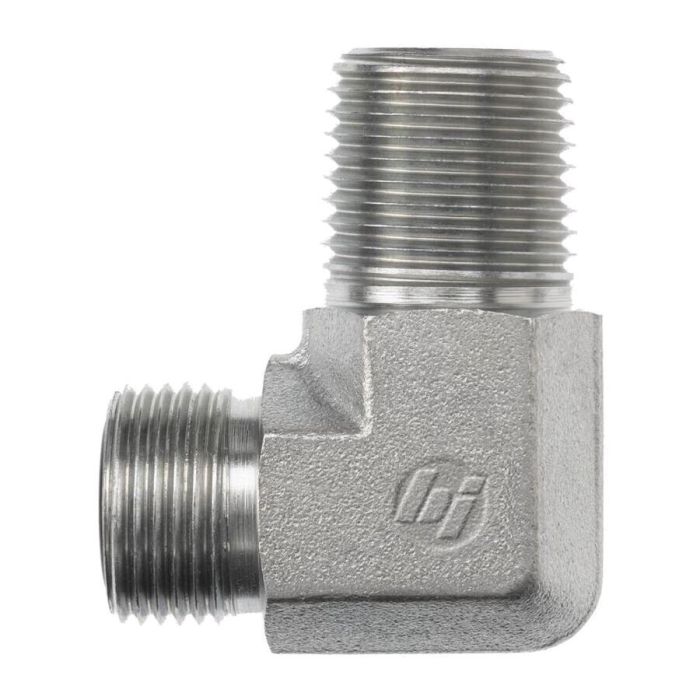

main product photo

10MFS-08MP 90 DEG ELBOW

Ask A Question

Description & Features

Designed for hydraulic line routing where direction changes are required, the 10MFS-08MP 90 Deg Elbow from Brennan Industries provides a reliable 90-degree transition between male face seal and male pipe thread connections. The fitting accommodates a 10 male face seal port on one end and a 08 male pipe thread on the other, making it well-suited for connecting hydraulic components where a straight fitting is not practical.

Manufactured by Brennan Industries, this elbow is built to the dimensional and performance standards expected in industrial hydraulic assemblies. Its compact elbow geometry helps manage tight routing constraints without sacrificing connection integrity.

SKU: FF2501-10-08

Supplier Part Number (MPN): FS2501-10-08-FG

Alternate Part Numbers: AFF2032T1008S

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476, SAE J515
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2501-FG Series
Thread Size
1-14 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Vince A on Mar 10, 2026, 9:05 PM
Got a spot on a hydraulic assembly where I can't run a straight fitting to save my life. Will this elbow handle a 10 male face seal on one side and a 08 male pipe thread on the other, or am I lookin at the wrong part?
Answer by: Customer Support on Mar 11, 2026, 9:45 PM
That combination is exactly what this fitting is built for. One end is a 10 male face seal and the other is a 08 male pipe thread, so if those are the two connections you're working with, this is the right elbow. The 90-degree angle is what makes it useful when a straight fitting just won't clear the surrounding components.
