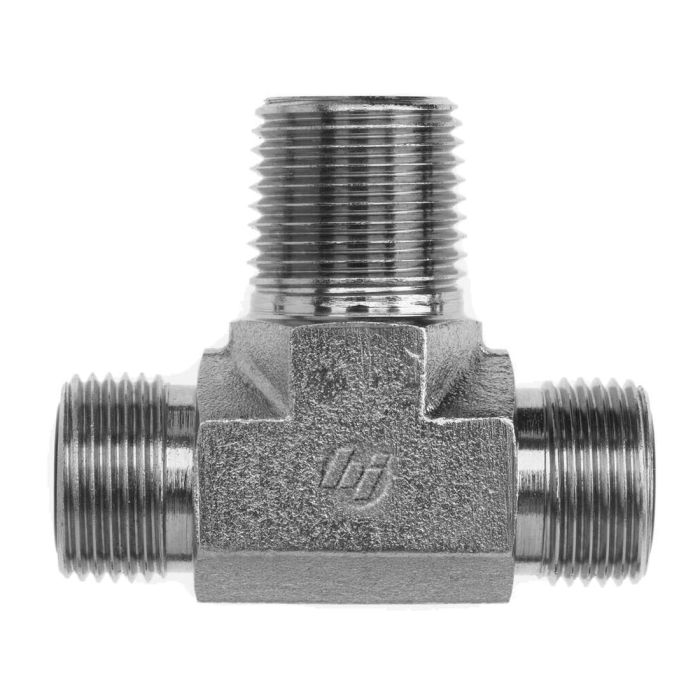

06MFS-06MFS-06MP BRANCH TEE

Ask A Question

Description & Features

Manufactured by Brennan Industries, this branch tee fitting is designed for hydraulic line applications requiring a three-way connection in a compact, inline configuration. The 06MFS-06MFS-06MP Branch Tee features two female swivel ports and one male pipe port, all in a 06 size, making it well-suited for splitting or combining flow within a hydraulic circuit.

The branch tee configuration allows a single supply or return line to serve two circuit paths simultaneously, a common requirement in mobile and industrial hydraulic assemblies. Brennan Industries fittings are recognized for consistent dimensional accuracy and reliable sealing performance across standard hydraulic service conditions.

SKU: FF2601-06-06-06

Supplier Part Number (MPN): FS2601-06-06-06-FG

Alternate Part Numbers: AFF2001T0606S

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453, SAE J476
Dimensions
1.96 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2601-FG Series
Thread Size
11/16-16 x 3/8-18

Product Questions & Answers (2)

Question by: Stan P on May 12, 2025, 1:27 PM
got a hydraulic line that splits into two separate paths and I need something to tie it all together with a pipe thread on one end, does this fitting do that?
Answer by: Customer Support on May 13, 2025, 3:42 PM
Yeah, that's exactly what this branch tee is built for. You've got two female swivel ports and one male pipe port, all in the 06 size, so you can run a single supply or return line and split it into two circuit paths off the same fitting. It's a pretty common setup in both mobile and industrial hydraulic assemblies, and the inline configuration keeps things compact when space is tight.
Question by: Tammy C on May 26, 2025, 11:28 AM
Is this here tee fitting good for hydraulics, or is it more for somethin' else?
Answer by: Customer Support on May 28, 2025, 6:33 AM
This branch tee is specifically designed for hydraulic applications, providing a reliable three-way connection for splitting or combining flow within a hydraulic circuit.
