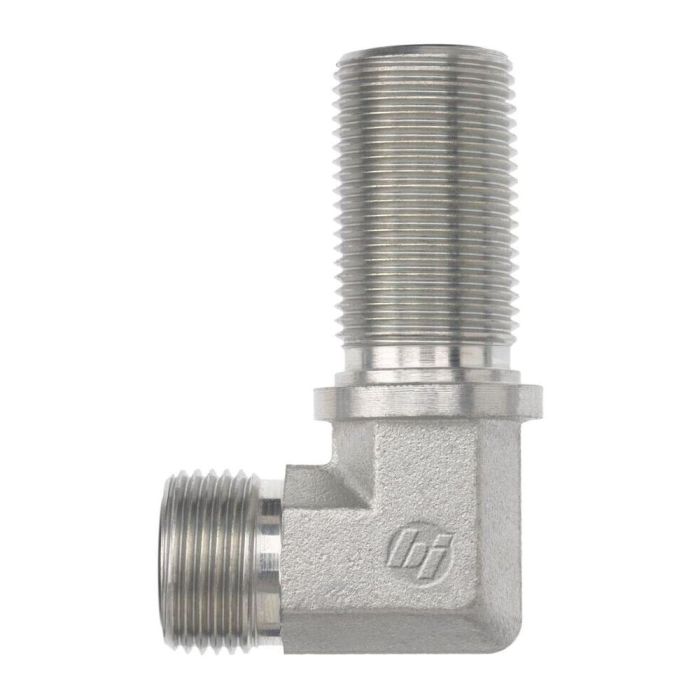

04MFS-04MFS 90 DEG BULKHEAD ELBOW

Ask A Question

Description & Features

The 04MFS-04MFS 90 Deg Bulkhead Elbow by Brennan Industries Inc is a high-quality industrial component designed for efficient and secure fluid and gas transfer in various applications. Manufactured with precision this elbow fitting ensures optimal performance and longevity. Constructed without adjustable ends or additional calibration requirements it provides a straightforward and reliable solution. This bulkhead elbow features a 90-degree angle making it ideal for installations that require angular connections. With no need for a check valve thread sealant or color coding the 04MFS-04MFS simplifies installation and maintenance. The durable design and robust construction meet stringent industrial standards ensuring high resistance to wear and tear. Its compatibility with other industrial components enhances ease of integration into existing systems.

MPN: FS2701-04-04-FG

Supplier Part Number: FS2701-04-04-FG

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Dimension Standards
SAE J1453
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
9200 psi
Operating Temperature
-40 to 250 deg F
Series
FS2701-FG Series
Thread Size
9/16-18

Product Questions & Answers (2)

Question by: Judy A on Jun 9, 2025, 6:01 PM
trying to plumb around a tight corner, is this fitting basically a 90 that passes through a panel or bracket?
Answer by: Customer Support on Jun 11, 2025, 5:43 PM
Built as a bulkhead elbow, it gives you a 90 degree turn while letting the connection be made through a bulkhead style mounting point, which is handy when you need an angular connection across a wall, plate, or enclosure.
Question by: Dustin C on May 26, 2025, 12:32 PM
Does this bulkhead elbow need any thread sealant when you're putting it in, or does it go in dry?
Answer by: Customer Support on May 27, 2025, 6:55 PM
No sealant is required for this fitting. It's built to install without thread sealant, a check valve, or any color-coded identification, which keeps the installation pretty straightforward. Just torque it in place and you're good to go.
