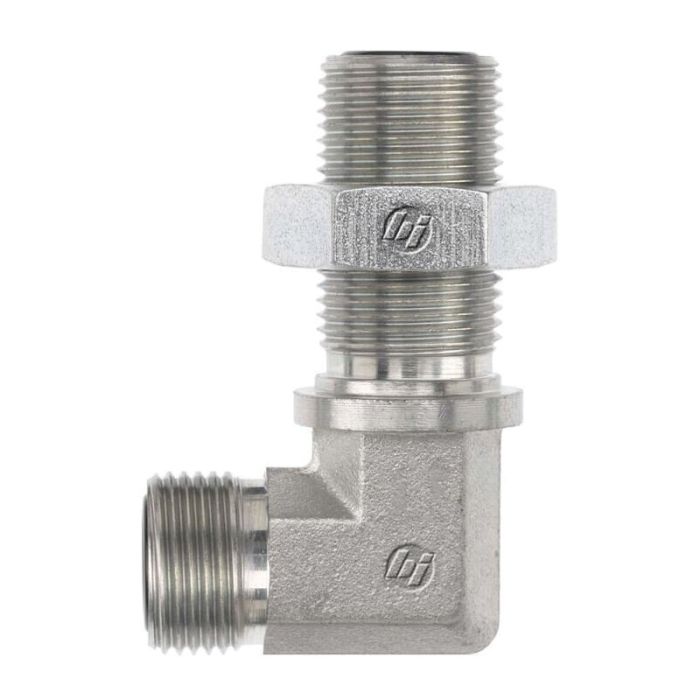

12MFS-12MFS 90 DEG BULKHEAD ELBOW W/NUT

Description & Features

The 12MFS-12MFS 90 DEG BULKHEAD ELBOW W/NUT is a Brennan Industries web item, also identified by supplier part number FS2701-LN-12-12-FG.

This 90-degree bulkhead elbow features 12MFS to 12MFS connections and includes a nut for secure installation.

SKU: FF2701-LN-12-12

Supplier Part Number (MPN): FS2701-LN-12-12-FG

Alternate Part Numbers: AFF2030T1212S

Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male ORFS	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE ORFS	Dimension Standards SAE J1453	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 1.188 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS2701-LN-FG Series	Thread Size 1-3/16-12

Question by: Gary W on Jul 5, 2025, 9:00 AM

What size are the connections on this elbow fitting?

Answer by: Customer Support on Jul 7, 2025, 6:37 AM

It has 12MFS connections on both ends.
