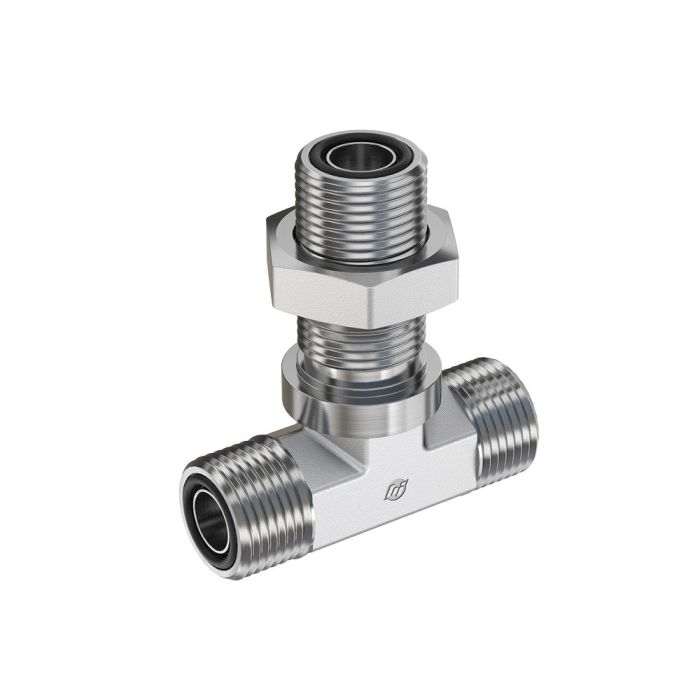

16MFS-16MFS-16MFS BULKHEAD W/NUT

Description & Features

This bulkhead with nut features three 16MFS connections, offering a reliable solution for hydraulic applications.

Suitable for a range of industrial uses, this fitting, manufactured by Brennan Industries, ensures secure and leak-free connections.

SKU: FF2703-LN-16-16-16

Supplier Part Number (MPN): FS2703-LN-16-16-16-FG

Alternate Part Numbers: AFF2033T1616S

Connection Size 1 1 in	Connection Size 2 1 in	Connection Size 3 1 in	Connection Type Male ORFS	Connection Type 1 Male SAE ORFS	Connection Type 2 Male SAE ORFS	Connection Type 3 Male SAE ORFS	Dimension Standards SAE J1453	Dimensions 3.34 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 1.438 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS2703-LN-FG Series	Thread Size 1-7/16-12

Question by: Lyle O on Feb 28, 2026, 4:05 PM

Can this bulkhead handle hydraulic fluid without leaking or corroding over time?

Answer by: Customer Support on Mar 2, 2026, 8:17 AM

Designed for reliable hydraulic applications, this bulkhead fitting from Brennan Industries ensures secure, leak-free connections.
