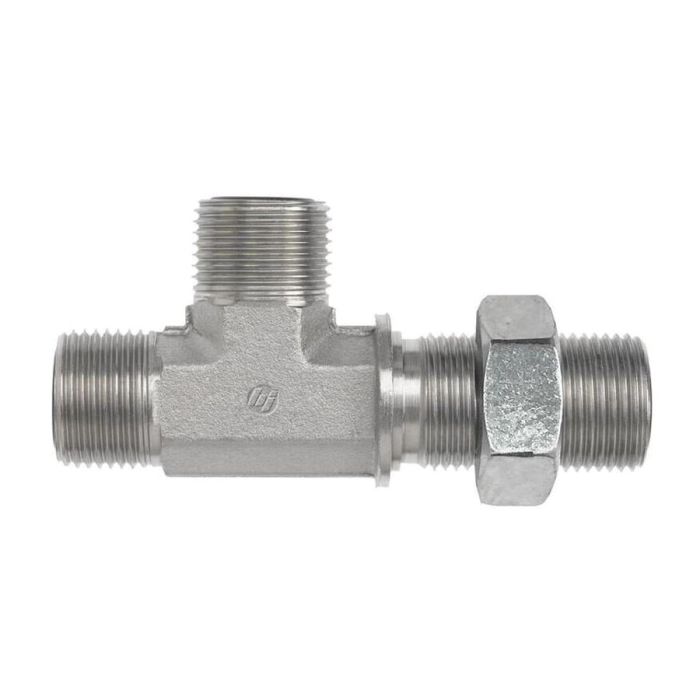

main product photo

04MORFS BULKHEAD UNION RUN TEE W/LN

Ask A Question

Description & Features

Designed for use in hydraulic line installations requiring a panel or bulkhead mounting point, the 04MORFS Bulkhead Union Run Tee W/LN provides a three-port tee configuration that allows fluid routing along the run while securing the fitting through a panel surface. The union design simplifies installation and line servicing without requiring full disassembly of the surrounding circuit.

Manufactured by Brennan Industries, this fitting is sized at 04 (1/4") across all three ports and is compatible with MORFS-style face seal connections. The locknut (LN) included with this fitting provides secure panel retention and helps maintain a stable, leak-resistant assembly in demanding hydraulic environments.

SKU: FF2704-LN-04-04-04

Supplier Part Number (MPN): FS2704-LN-04-04-04-FG

Alternate Part Numbers: AFF2174T0404S

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Size 3
1/4 in
Connection Type
Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE ORFS
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453
Dimensions
2.74 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
0.563 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
9200 psi
Operating Temperature
-40 to 250 deg F
Series
FS2704-LN-FG Series
Thread Size
9/16-18

Product Questions & Answers (1)

Question by: Chad C on Aug 25, 2025, 1:01 PM
Can this bulkhead union tee handle a good amount of pressure without leaking?
Answer by: Customer Support on Aug 27, 2025, 6:02 AM
The locknut helps ensure a stable, leak-resistant assembly, especially in demanding hydraulic environments.
