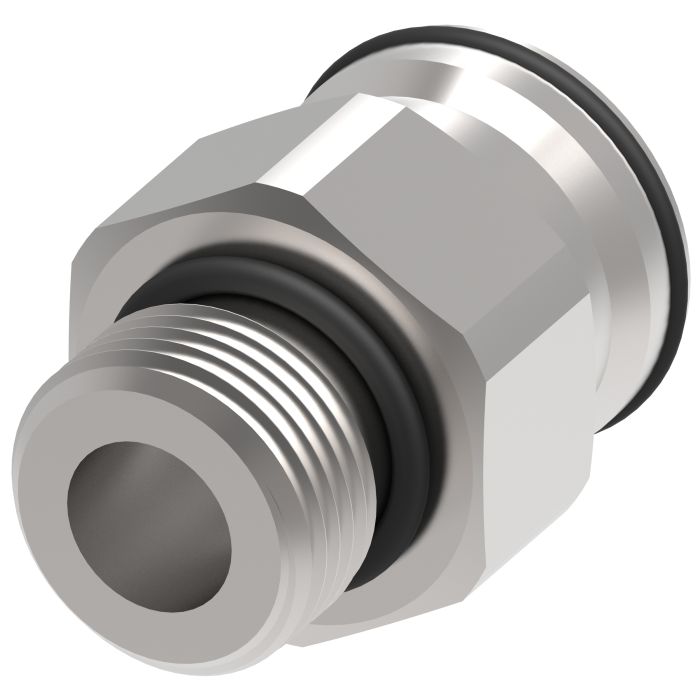

This straight adapter is manufactured from carbon steel and features Dura-Kote plating, providing corrosion resistance that meets ASTM B117 salt spray standards. Rated for operating pressures above SAE standards and tested to SAE J1176 and DIN 2ST certifications, it is built for demanding hydraulic system requirements. The Male SAE O-Ring to Fem STC connects a 3/4" male SAE ORB end to a 3/8" female STC end, making it a reliable choice for joining SAE O-ring boss ports to Eaton STC fittings. A thread sealant is not required due to the O-ring face seal design. The adapter has a minimum working temperature of -40°F and is sourced from Danfoss Power Solutions (formerly Aeroquip). No thread sealant compound is needed at the SAE ORB end.
SKU: FF3042-0806S
Supplier Part Number (MPN): FF3042-0806S
Alternate Part Numbers: MI-06585237, MINO-00015X20019
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-06585237, Alternate Part Number MINO-00015X20019, Alternate Part Number MINO-00925X13209
Certifications
DIN 2ST|ASTM B117|SAE J1176
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.75
End Size 2
0.38
End Type 1
SAE ORB
End Type 2
STC
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Straight Adapters
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
0.98
Sub Brand
None
Supplier Part Number
FF3042-0806S
Product Weight
0.12 lbs
Product Questions & Answers (2)
Question by: Terry S on Sep 6, 2025, 4:52 PM
got a port that’s 3/4 male SAE ORB and i need to go over to a 3/8 female STC. is this the right adapter?
Answer by: Customer Support on Sep 8, 2025, 8:42 AM
For that hookup, it’s a straight adapter that goes from a 3/4 inch male SAE O-ring boss end to a 3/8 inch female STC end, so it’s meant for joining an SAE ORB port to an Eaton STC fitting.
Question by: Kurt C on Jun 16, 2025, 3:05 PM
does this thing need any thread sealant or tape on either end when you're putting it together?
Answer by: Customer Support on Jun 17, 2025, 5:48 PM
No sealant needed on the SAE ORB end. The O-ring face seal handles that job on its own, so you're not reaching for teflon tape or pipe dope. That's one less step during assembly and one less variable that could cause a leak down the road.
