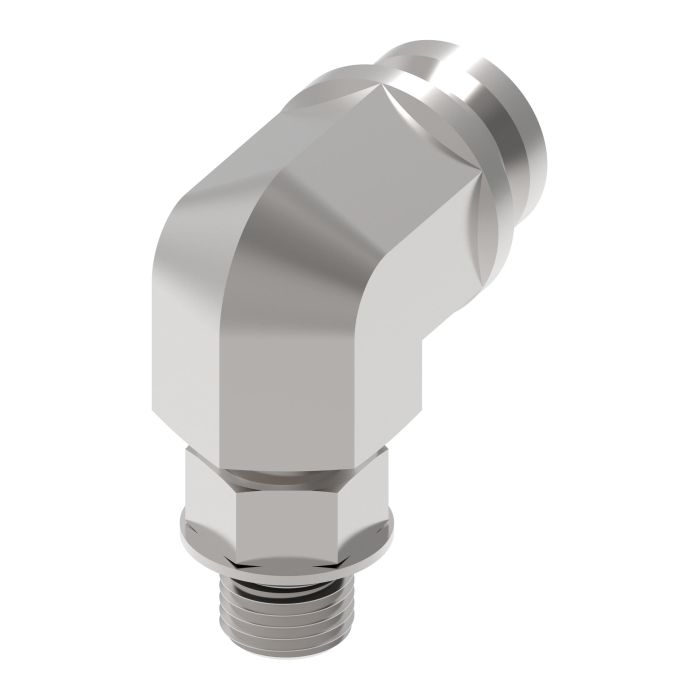

Danfoss / Eaton Male SAE O-Ring TO FemaleSTC 90 D

Ask A Question

Description & Features

This carbon steel elbow adapter features a male SAE O-Ring (ORB) end and a female STC end, oriented at a 90-degree angle.

The Danfoss / Eaton Male SAE O-Ring TO FemaleSTC 90 D offers design flexibility and is suitable for higher operating pressures exceeding SAE standards. It is plated with Dura-Kote for enhanced corrosion resistance. The male end size is 0.4375, and the female end size is 0.4375. The hex size is 0.56.

SKU: FF3046-0406S

Supplier Part Number (MPN): FF3046-0406S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female STC, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female STC
Dimension Standards
SAE J1926
Drop Dimensions
1.29 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF3046 Series
Thread Size
7/16-20

Product Questions & Answers (1)

Question by: Cindy T on Jun 22, 2025, 2:17 PM
Will this elbow hold up to hydraulic pressures above the SAE standard?
Answer by: Customer Support on Jun 24, 2025, 7:38 AM
Dura-Kote plating adds enhanced corrosion resistance, and its design allows for operating pressures exceeding SAE standards.
