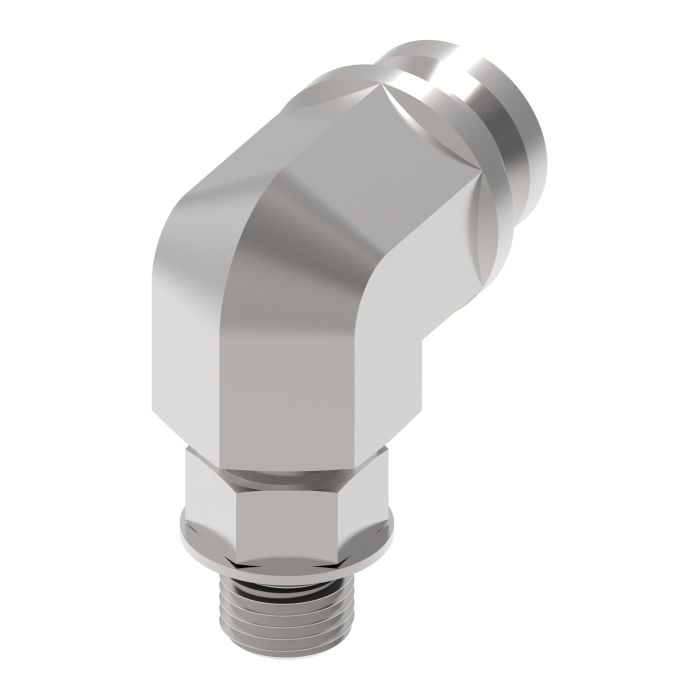

A 90-degree elbow configuration connects male SAE O-Ring Boss ports to female STC fittings in a single compact adapter, making it a practical solution for routing hydraulic lines where straight connections are not feasible. The Danfoss / Eaton Male SAE O-Ring TO Female STC 90 D is constructed from carbon steel and features Dura-Kote plating for corrosion resistance in demanding service environments.
Both ends are sized at 9/16 in., with a hex size of 0.69 in. on the female end and a drop dimension of 1.40 in. Part of the FF3046 series, this adapter is rated for operating pressures above standard SAE requirements and carries a minimum working temperature of -65°F. Hundreds of available configurations across the series support design flexibility in multi-circuit hydraulic assemblies.
SKU: FF3046-0606S
Supplier Part Number (MPN): FF3046-0606S
|
Alternate Part Numbers
MINO-00925X13217
|
Drop Dimension
1.40
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.56
|
End Size 2
0.56
|
End Type 1
SAE ORB
|
End Type 2
STC
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.69
|
ICC
Elbow Adapters
|
Item Type
SAE ORB Male/STC Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
0.75
|
Sub Brand
None
|
Supplier Part Number
FF3046-0606S
|
Product Weight
0.19 lbs
|
