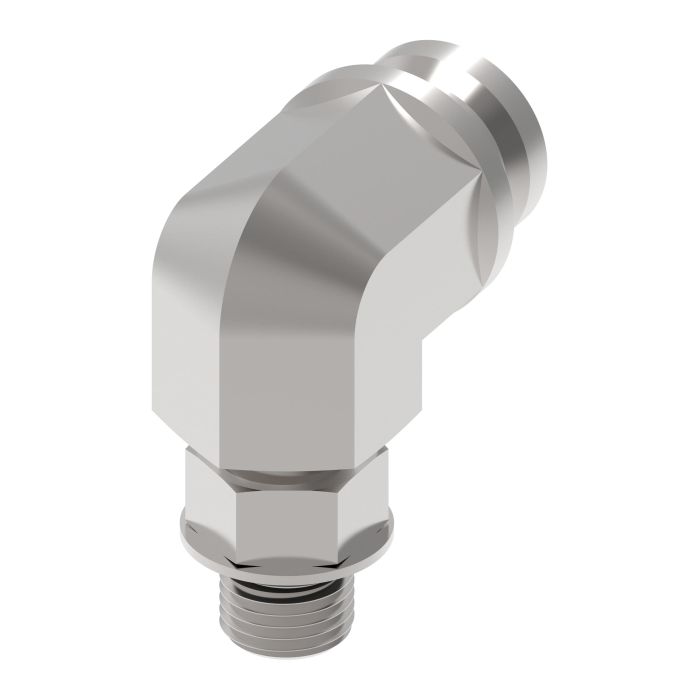

main product photo

Danfoss / Eaton Male SAE O-Ring TO Female STC 90 D

Ask A Question

Description & Features

This carbon steel 90° elbow adapter connects a male SAE O-Ring to a female STC connection. The Danfoss / Eaton Male SAE O-Ring TO Female STC 90 D features Dura-Kote plating, providing enhanced corrosion resistance. Design flexibility is assured with hundreds of styles to choose from, with operating pressures exceeding SAE standards.

This SAE ORB Male/STC Female 90° Elbow Adapter is part of the Aeroquip line. It is designed to perform reliably in demanding hydraulic applications, even in minimum working temperatures as low as -65°F.

SKU: FF3046-1212S

Supplier Part Number (MPN): FF3046-1212S

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female STC, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
Female STC
Dimension Standards
SAE J1926
Drop Dimensions
2.19 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF3046 Series
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Steve B on Oct 7, 2025, 6:38 PM
What kind of operating temperature is this elbow adapter good for?
Answer by: Customer Support on Oct 9, 2025, 6:03 AM
This SAE ORB Male/STC Female 90° Elbow Adapter can handle minimum working temperatures as low as -65°F.
