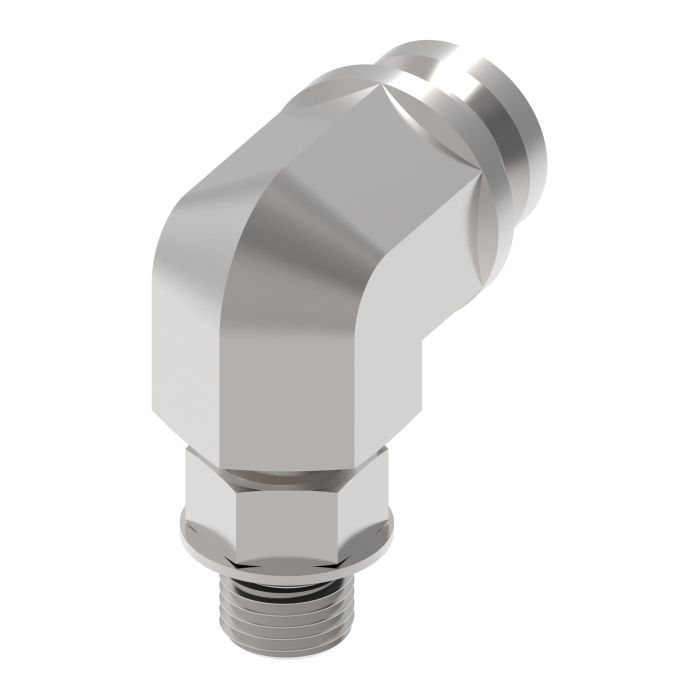

Constructed from carbon steel with Dura-Kote plating for corrosion resistance, the Danfoss / Eaton Male SAE O-Ring TO Female STC 90° Elbow Adapter provides a reliable 90-degree connection between SAE O-Ring Boss (ORB) male and STC female end types. The elbow configuration supports flexible routing in hydraulic assemblies where straight-line connections are not practical.
Rated for operating pressures above standard SAE specifications, this adapter is well-suited for demanding hydraulic circuit applications. The 1.5-inch hex size on the STC end and a 2.5-inch drop dimension are key dimensional references for installation planning. Part of the FF3046 series, it offers compatibility within a broad range of Aeroquip-branded adapter configurations, providing versatility across a wide range of hydraulic system layouts.
SKU: FF3046-1616S
Supplier Part Number (MPN): FF3046-1616S
|
Alternate Part Numbers
MINO-00925X13221
|
Drop Dimension
2.50
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
SAE ORB
|
End Type 2
STC
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
1.50
|
ICC
Elbow Adapters
|
Item Type
SAE ORB Male/STC Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.61
|
Sub Brand
None
|
Supplier Part Number
FF3046-1616S
|
Product Weight
1.10 lbs
|
