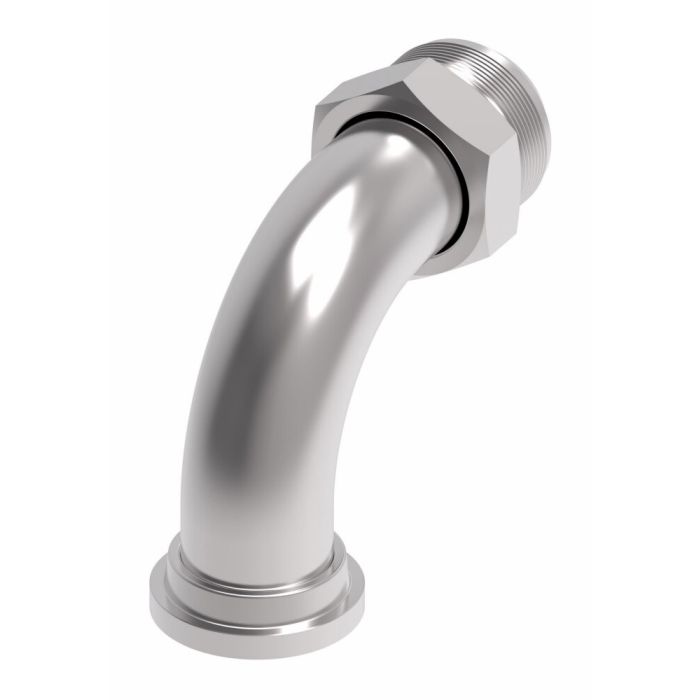

Danfoss / Eaton DISCharge Pipe

Ask A Question

Description & Features

This Danfoss / Eaton DISCharge Pipe is constructed from carbon steel and features Dura-Kote plating, providing superior corrosion resistance.

The Eaton discharge pipe offers design flexibility with a wide range of styles to choose from, and supports higher operating pressures than SAE standards. This elbow adapter is suitable for marine/military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling. This part is certified to SAE J514 standards.

It features a flanged end (size 1) and a SAE 37 male end. It has a minimum working temperature of -65 degrees.

SKU: FF5162-1620S

Supplier Part Number (MPN): FF5162-1620S

Specifications

Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Female Code 61 Split Flanged
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J514/J518
Drop Dimensions
2.38 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65
Series
FF5162 Series
Thread Size
1-5/8-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Neil G on May 20, 2025, 4:43 PM
What kind of environments is this discharge pipe suited for?
Answer by: Customer Support on May 22, 2025, 6:17 AM
This Eaton discharge pipe works well in marine and military settings, plus chemical processing, pulp and paper industries, food and beverage processing, and even off-shore drilling applications.
Question by: Larry J on Jun 14, 2025, 7:05 PM
What kind of coating does this discharge pipe have, and is it gonna hold up in a saltwater environment?
Answer by: Customer Support on Jun 16, 2025, 4:43 PM
Carbon steel on its own wouldn't last long around saltwater, but Eaton put Dura-Kote plating on this one specifically to fight corrosion. That's why it shows up as approved for marine and offshore drilling use. If you're running it anywhere near salt spray or harsh chemical exposure, the plating is doing real work there.
Question by: Rick Y on Apr 1, 2026, 9:09 AM
got a flanged line on one side and need to tie into a 37 degree male on the other. is that what this elbow is set up for?
Answer by: Customer Support on Apr 3, 2026, 6:48 AM
Function-wise, it is a 90 degree elbow adapter built with a flanged end on one side, size 1, and an SAE 37 degree male end on the other.
