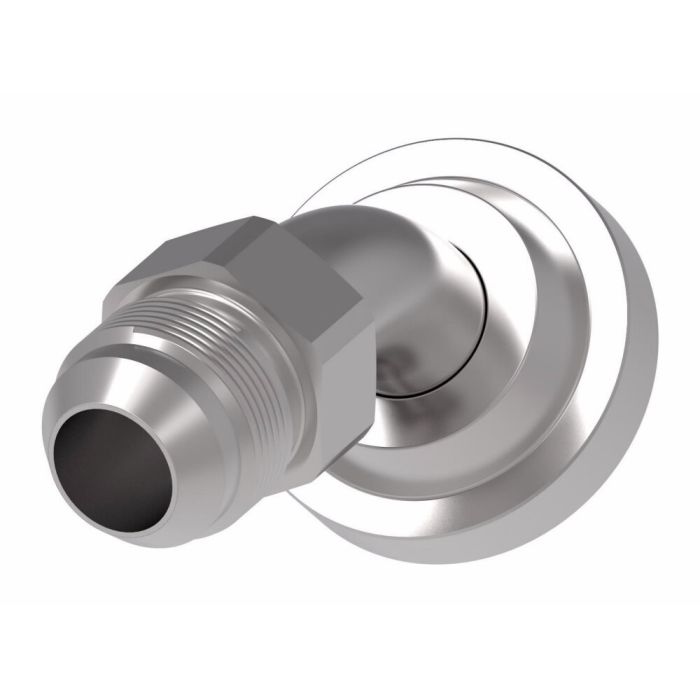

Designed for demanding industrial environments, the Danfoss / Eaton FF5539-1612S is a 45-degree elbow adapter configured with a Code 62 SAE split flange (#16) on one end and a #12 Male JIC (SAE 37° flare) on the other. Constructed from carbon steel with Dura-Kote plating, this adapter provides strong corrosion resistance suited to the rigors of marine, military, offshore drilling, chemical processing, pulp and paper, and food and beverage applications.
Certified to SAE J514, this fitting meets and exceeds standard SAE working pressure thresholds, making it a reliable choice where elevated pressure capacity is a priority. The flanged-to-JIC elbow configuration accommodates directional routing in tight assemblies, with a 1.0-inch drop dimension and 1.88-inch width. Part of a broad product family offering hundreds of adapter styles, the FF5539 series supports design flexibility across a wide range of hydraulic system configurations. Minimum working temperature is rated to -65°F.
SKU: FF5539-1612S
Supplier Part Number (MPN): FF5539-1612S
|
Alternate Part Numbers
MINO-00925X13254
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE J514
|
Drop Dimension
1.00
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 2
13556
|
End Size 1
1
|
End Type 1
Flanged
|
End Type 2
SAE 37
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
Flanged /SAE 37° Male 45°° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.88
|
Sub Brand
None
|
Supplier Part Number
FF5539-1612S
|
Product Weight
0.63 lbs
|
