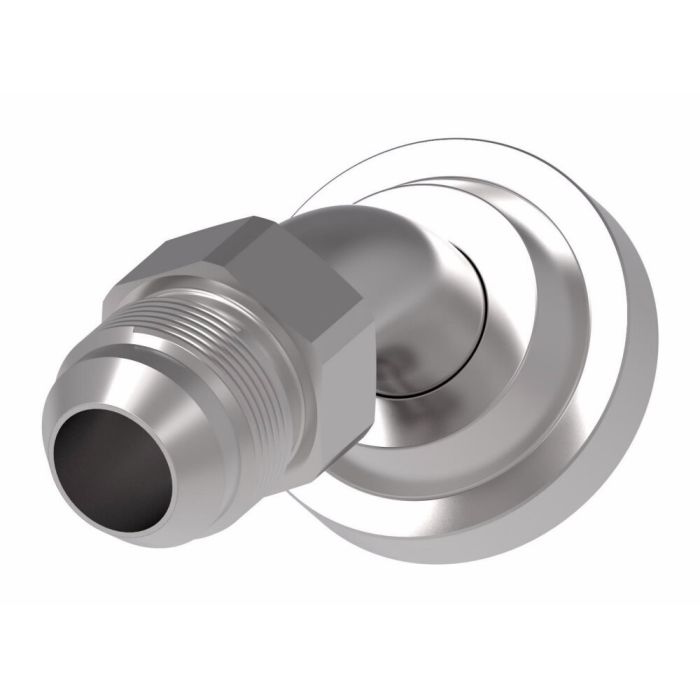

Designed for demanding industrial environments, these Eaton Aeroquip Danfoss / Eaton Adapters are flanged SAE split flange (Code 62) to SAE 37° male 45° elbow adapters constructed from carbon steel. The Dura-Kote plating provides strong corrosion resistance, making them well-suited for use in marine, military, offshore drilling, chemical processing, food and beverage processing, and pulp and paper industries.
Certified to SAE J514, these elbow adapters are engineered to perform at pressures above standard SAE requirements. With hundreds of available styles in the series, sourcing the right configuration for a given application is straightforward. The 45° elbow geometry supports routing flexibility in space-constrained assemblies, and the carbon steel construction delivers reliable durability across a broad temperature range, with a minimum working temperature of -65°F.
SKU: FF5539-2020S
Supplier Part Number (MPN): FF5539-2020S
Alternate Part Numbers: C1FJ26
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1FJ26, Alternate Part Number MINO-00925X13256
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE J514
Drop Dimension
1.15
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 2
13556
End Type 1
Flanged
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Elbow Adapters
Item Type
Flanged /SAE 37° Male 45°° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.12
Sub Brand
None
Supplier Part Number
FF5539-2020S
Product Weight
1.24 lbs
Product Questions & Answers (2)
Question by: Vince H on Jun 27, 2025, 11:56 AM
Hey, will this adapter hold up okay if I'm using it in a chemical plant where things can get pretty corrosive?
Answer by: Customer Support on Jun 28, 2025, 7:15 PM
Dura-Kote plating on these adapters is specifically there to give you superior corrosion resistance, so it should be well-suited for that kind of environment.
Question by: Wayne M on Feb 3, 2026, 1:31 PM
these rated for anything past standard SAE pressure levels, or are they just built to meet spec?
Answer by: Customer Support on Feb 4, 2026, 5:02 PM
They actually exceed standard SAE requirements on operating pressure, not just meet them. The FF5539-2020S is certified to SAE J514 but engineered to perform above what that standard calls for, so you've got some extra headroom if your system runs on the higher end.
