This DANFOSS / EATON 90 DEG CODE 62 #24 FLG X #16 M-JIC adapter is suitable for a range of applications, including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling.

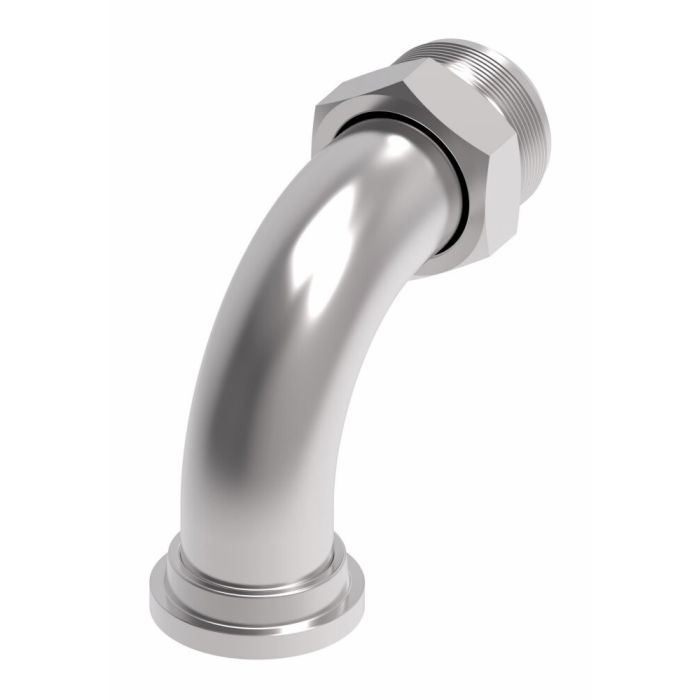

The flanged/SAE 37° male 90° elbow adapter is constructed of carbon steel with Dura-Kote plating, providing superior corrosion resistance. It offers design flexibility with a wide variety of styles to choose from, and provides higher operating pressures above SAE standards. This elbow adapter meets SAE J514 standards.
SKU: FF5540-2416S
Supplier Part Number (MPN): FF5540-2416S
Alternate Part Numbers: C1JF28
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1JF28, Alternate Part Number MINO-00925X13264
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE J514
Drop Dimension
2.75
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 2
13556
End Type 1
Flanged
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
1.38
ICC
Elbow Adapters
Item Type
Flanged /SAE 37° Male 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.38
Sub Brand
None
Supplier Part Number
FF5540-2416S
Product Weight
1.34 lbs
Product Questions & Answers (1)
Question by: Bobby T on May 12, 2025, 5:01 PM
What size is that hex on the male JIC end?
Answer by: Customer Support on May 13, 2025, 5:13 PM
The hex size on the male JIC end of this adapter is 1.38 inches.
