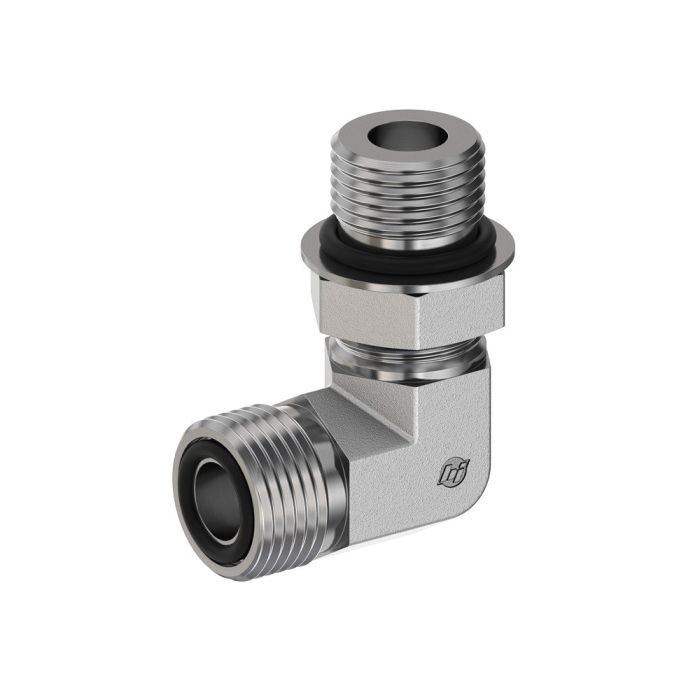

main product photo

20MFS-16MORB 90 DEG ELBOW

Ask A Question

Description & Features

The 20MFS-16MORB 90 Deg Elbow from Brennan Industries Inc is designed for robust and reliable performance in industrial applications. This precision-engineered elbow connector ensures optimal flow direction control in hydraulic systems.

With a focus on durability the 90-degree elbow features high-strength construction making it suitable for demanding environments. The fixed end connection type guarantees a secure and leak-free fit contributing to the system's overall efficiency and reliability.

Manufactured to strict quality standards the 20MFS-16MORB 90 Deg Elbow provides exceptional resistance to wear and corrosion. The product does not include adjustable components ensuring stability and reducing the need for maintenance over time.

This elbow is compatible with various industrial fittings and is an essential component for hydraulic system optimization.

Supplier Part Number: FS6801-20-16-NWO-FG

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1-5/8
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6801-NWO-FG Series
Thread Size
1-11/16-12, 1-5/16-12

Product Questions & Answers (3)

Question by: Todd R on Oct 8, 2025, 8:30 PM
Does this elbow have any adjustable end on it, or are both ends fixed? Trying to figure out if I can clock it after I get it in place.
Answer by: Customer Support on Oct 10, 2025, 6:45 AM
Both ends are fixed on this one, no adjustability built in. That's actually what makes it hold up well over time since there's nothing to work loose or need retightening down the road. You'll want to plan your routing and orientation before installation, because once it's torqued in it stays where it sits.
Question by: Tony M on Mar 3, 2026, 1:09 PM
got a tight spot on a hydraulic line, is this elbow the kind that’s fixed or can you swivel it to line things up?
Answer by: Customer Support on Mar 5, 2026, 6:27 AM
Fixed end connection is what you get here, so it is meant to hold its position rather than swivel or adjust. That helps keep the joint stable and cuts down on loosening over time.
Question by: Dale B on May 25, 2025, 7:11 PM
Will this elbow fitting hold up okay in a hydraulic system that sees pretty constant use?
Answer by: Customer Support on May 26, 2025, 8:45 PM
Built with high-strength construction, this 90-degree elbow is definitely suitable for demanding environments where durability is key.
