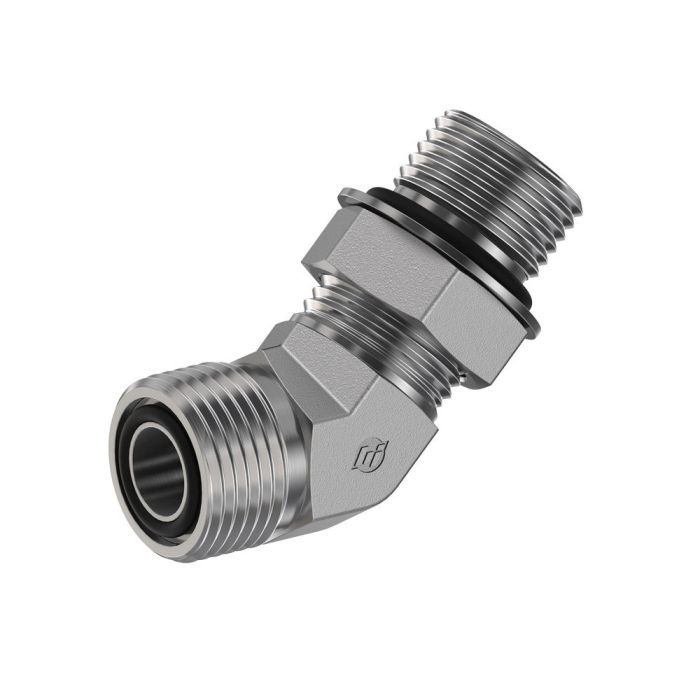

main product photo

10MFS-12MAORB 45 DEG ELBOW

Ask A Question

Description & Features

Manufactured by Brennan Industries, this 45-degree elbow fitting connects a 10 male face seal (MFS) port to a 12 male ORB (O-Ring Boss) port, making it well suited for hydraulic lines where a directional change is needed between these two common thread standards. The angled configuration helps route hose and tube assemblies in confined spaces without requiring sharp bends.

The 10MFS-12MAORB 45 Deg Elbow is a cross-port adapter designed for use in hydraulic systems where face seal and ORB connections must interface at a 45-degree angle. Its construction is consistent with Brennan Industries' industrial-grade fittings line, built to perform reliably in demanding fluid power applications.

SKU: FF6802-10-12

Supplier Part Number (MPN): FS6802-10-12-NWO-FG

Alternate Part Numbers: AFF2068T1012S

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Dimension Standards
SAE J1453, SAE J1926
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6802-NWO-FG Series
Thread Size
1-14 x 1-1/16-12

Product Questions & Answers (1)

Question by: Duane L on Apr 22, 2025, 7:09 PM
What's the deal with the angle on this thing, is it a strict 45 or is there some wiggle room?
Answer by: Customer Support on Apr 24, 2025, 1:39 PM
This elbow fitting is precisely a 45-degree angle, designed to provide an exact directional change between the two ports. It doesn't offer any flexibility beyond that fixed angle.
