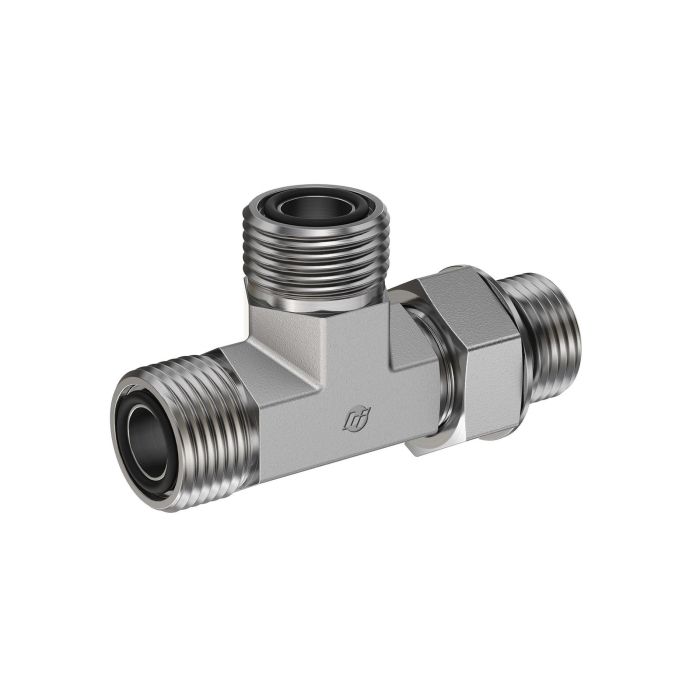

16MFS-16MAORB-16MFS RUN TEE

Ask A Question

Description & Features

Designed for inline branching in hydraulic assemblies, the 16MFS-16MAORB-16MFS Run Tee from Brennan Industries connects 1-inch SAE O-ring face seal ports on the run ends to a 1-inch male O-ring boss branch port. This configuration allows a branch takeoff without disrupting flow through the primary circuit path.

The O-ring face seal connections seat against a metal surface backed by an elastomeric seal, providing leak-resistant performance under pressure. The male O-ring boss branch is broadly compatible with standard hydraulic ports and adapters used across mobile and industrial hydraulic systems, making this fitting a practical choice where both connection types are present in the same assembly.

SKU: FF6804-16-16-16

Supplier Part Number (MPN): FS6804-16-16-16-NWO-FG

Alternate Part Numbers: AFF1865T1616S, C1ED87, FS6804-16-16-16-, FS6804-16-NWOFG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male SAE ORFS
Connection Type 2
Male SAE Adjustable ORB
Connection Type 3
Male SAE ORFS
Dimension Standards
SAE J1453, SAE J1926
Dimensions
3.99 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-5/8
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5500 psi
Operating Temperature
-40 to 250 deg F
Series
FS6804-NWO-FG Series
Thread Size
1-7/16-12, 1-5/16-12

Product Questions & Answers (1)

Question by: Hank F on Nov 5, 2025, 11:36 AM
Hey, will this tee fitting work to split off a hydraulic line to run another cylinder? Just want to make sure it's compatible with standard hydraulic stuff.
Answer by: Customer Support on Nov 7, 2025, 6:14 AM
Yes, this run tee is designed to connect a 1-inch SAE O-ring face seal port to a 1-inch male O-ring boss branch port, which is a pretty common setup for adding a branch line in hydraulic systems.
