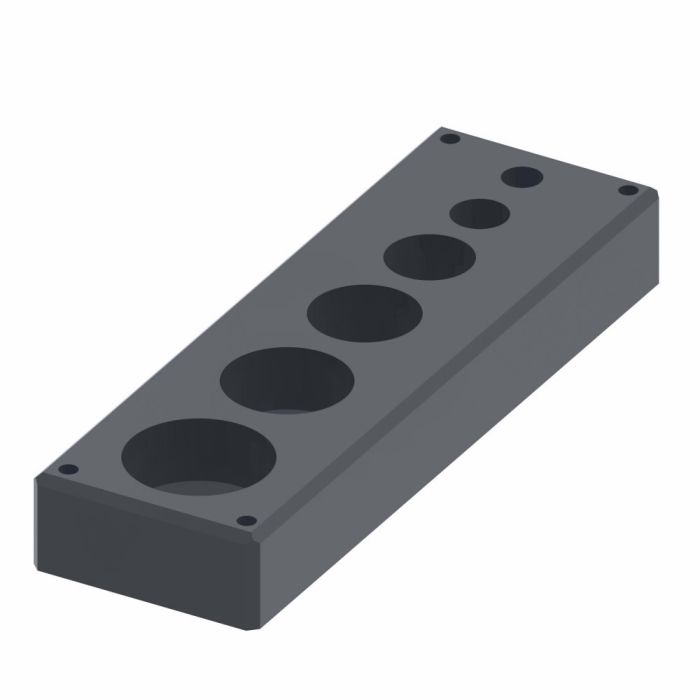

main product photo

LOMAR HOSE INSERTION GAUGE -4 THRU -16

Ask A Question

Description & Features

The Danfoss / Eaton Hose Insertion Gauge is expertly crafted from blue anodized aluminum ensuring both durability and reliability across various environments. Its simplified and enhanced design offers a versatile range of styles suited for diverse applications.

This gauge is a free-standing tool requiring no mounting which adds to its flexibility in usage. It does not necessitate additional components such as mandrels or cases streamlining processes and reducing dependencies on extra tools.

Designed without needing adjustments or calibrations it provides straightforward utility straight out of the box. The absence of color coding and ratcheting mechanisms simplifies its construction while maintaining robust functionality.

Manufactured by Danfoss (Aeroquip Inc Lomar) this insertion gauge is classified under ECCN EAR99 indicating it is not subject to specific export controls. Suitable for professional use it meets the demands of industrial and technical applications.

Supplier Part Number: FF90308-01

Specifications

Brand
Aeroquip® by Danfoss
Accessory Type
Hose Insertion Gage
Color
Blue
Finish
Anodized
Material
Aluminum
Mounting Type
Free-Standing
nmfc
50
Segment Code
C
Series
FF90308 Series
Suitable For Use With
All Hoses that Mate with 4 to 16 TTC and TTC12 Fittings

Product Questions & Answers (3)

Question by: Brett C on Aug 7, 2025, 6:49 AM
trying to figure out what this gauge actually does, is it just for checking hose insertion depth?
Answer by: Customer Support on Aug 9, 2025, 6:04 AM
Used as a free standing hose insertion gage, it helps you verify insertion for hose sizes -4 through -16 during assembly work.
Question by: Pete B on Oct 5, 2025, 7:51 AM
does this gauge work for multiple hose sizes or do you need a separate one for each size?
Answer by: Customer Support on Oct 6, 2025, 9:38 AM
Covers -4 through -16 hose sizes all in one tool, so you're not juggling multiple gauges on the job. It's free-standing and ready to use right out of the box with no calibration, no mandrels, and no extra accessories needed.
Question by: Gary M on Dec 20, 2025, 3:41 PM
How does this hose insertion gauge hold up in different work environments?
Answer by: Customer Support on Dec 22, 2025, 7:52 AM
Crafted from blue anodized aluminum, this gauge is designed to offer durability and reliability across various environments.
