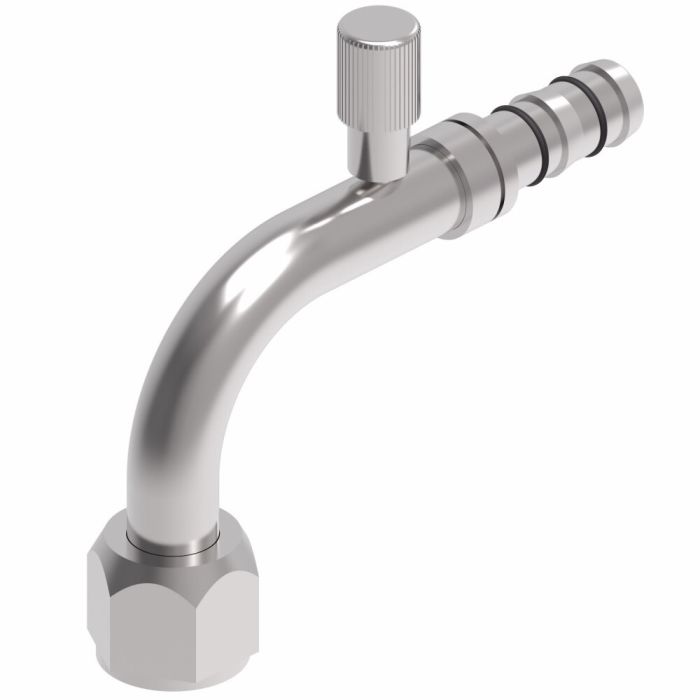

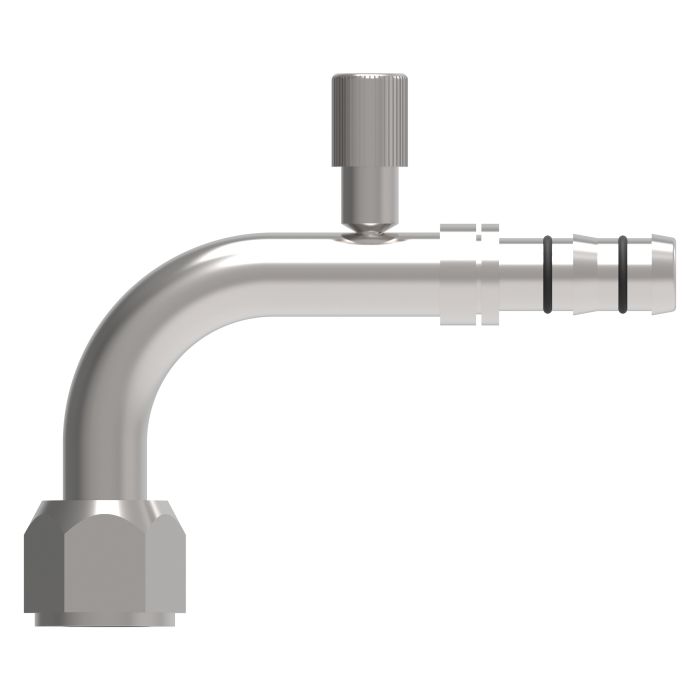

Aeroquip 90Deg Elbow FEM O-Ring (Short PILOT) W/R134A LS CHG PRT

Ask A Question

Description & Features

Designed for A/C refrigeration applications, this carbon steel 90-degree elbow fitting integrates a female O-ring short pilot connection with an R134a low-side charge port. Part of the Eaton Aeroquip E-Z Clip system, the Aeroquip 90Deg Elbow Fem O-Ring (Short Pilot) W/R134a LS Chg Prt is engineered as a nipple assembly compatible with -12 hose dash size and SAE 45 end type, making it a practical choice for refrigerant line assemblies in mobile and industrial HVAC systems.

Constructed from carbon steel for durability in demanding service environments, the fitting features a drop dimension of 2.56 inches and a product width of 1.25 inches. Its design supports faster assembly times without sacrificing connection reliability across a wide range of A/C refrigeration configurations.

SKU: FJ3012-03-1212S

Supplier Part Number (MPN): FJ3012-03-1212S

Alternate Part Numbers: C1EY23, MI-08749045, MINO-00015X89556

Specifications

Brand
Danfoss
a Dimensions
5.1 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.52 in
Dimensions
5.72 in L x 1.25 in W x 3.5 in H
Drop Dimensions
2.56 in
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3012 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Product Questions & Answers (3)

Question by: Dustin H on Jun 23, 2025, 6:06 AM
got a -12 A/C hose setup, is this elbow the right one for it or am i barking up the wrong tree
Answer by: Customer Support on Jun 24, 2025, 3:21 PM
For a -12 hose dash size A/C refrigeration line, this fitting matches that hose size and is built as an Eaton Aeroquip E-Z Clip nipple assembly with a 90 degree elbow. It also uses a female O-ring short pilot connection and includes an R134a low-side charge port, so it fits that style of refrigerant line assembly.
Question by: Ray S on Jan 12, 2026, 9:24 PM
Running R134a lines on a mobile A/C setup and need a 90-degree elbow with a low-side charge port built in. this fitting do all that in one piece?
Answer by: Customer Support on Jan 14, 2026, 6:02 AM
For that kind of setup, yeah, it handles both in a single fitting. The elbow gives you the 90-degree turn you need for tight routing, and the low-side charge port is already integrated, so you're not adding a separate Schrader or tee into the line. It's a nipple assembly built for the Eaton Aeroquip E-Z Clip system, compatible with -12 hose dash size and an SAE 45 end type. Carbon steel construction, so it holds up in mobile environments where things get knocked around. The female O-ring short pilot connection keeps the seal tight on the refrigerant side.
Question by: Terry L on Dec 22, 2025, 7:33 PM
How sturdy is this thing if I'm using it on a refrigeration line that sees a good amount of vibration?
Answer by: Customer Support on Dec 23, 2025, 9:20 PM
Constructed from carbon steel, this fitting is designed to hold up in demanding service environments, offering durability for refrigerant line assemblies, even where vibration is a factor.
