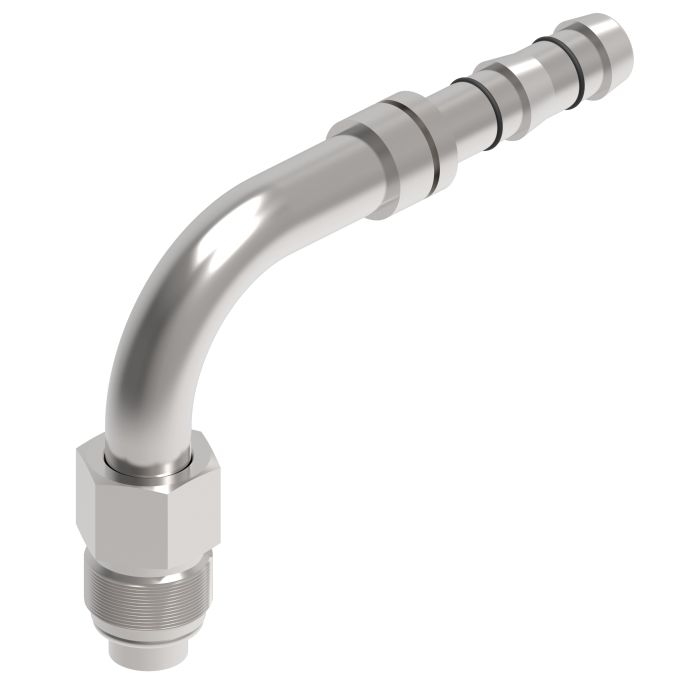

Aeroquip 90 Deg Elbow Male O-Ring (Short PILOT)

Ask A Question

Description & Features

The Aeroquip 90 Deg Elbow Male O-Ring (Short PILOT) is precision-engineered by Danfoss Power Solutions (II LLC Aeroquip) for a variety of industrial applications. Constructed from durable carbon steel this elbow fitting offers long-lasting reliability ensuring a dependable connection.

This product features a drop dimension of 2.7900 making it suitable for tight spaces while maintaining robust performance. Its design helps reduce assembly times streamlining your production processes effectively.

With a male UNF End Gender 1 and a Line/Hose/Tube End Type 2 it's versatile and easy to integrate into existing systems. The hose dash size of -12 ensures compatibility with a wide range of hose configurations.

Whether in automotive heavy machinery or industrial settings this elbow fitting by Danfoss Power Solutions stands out for its efficiency and durability making it a crucial component in your array of high-performance parts.

Supplier Part Number: FJ3019-05-1212S

MPN: EAR99

Specifications

Brand
Danfoss
a Dimensions
4.22 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.64 in
Dimensions
4.75 in L x 1.06 in W x 3.31 in H
Drop Dimensions
2.79 in
End Gender 1
Male
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
12
Inside Diameter
3.47 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3019 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-16

Product Questions & Answers (1)

Question by: Wes P on May 11, 2025, 11:05 AM
trying to squeeze a 90 in a tight spot, how much drop does this short pilot elbow have?
Answer by: Customer Support on May 13, 2025, 6:35 AM
For tight routing, the drop dimension on this short pilot 90 degree elbow is 2.7900.
