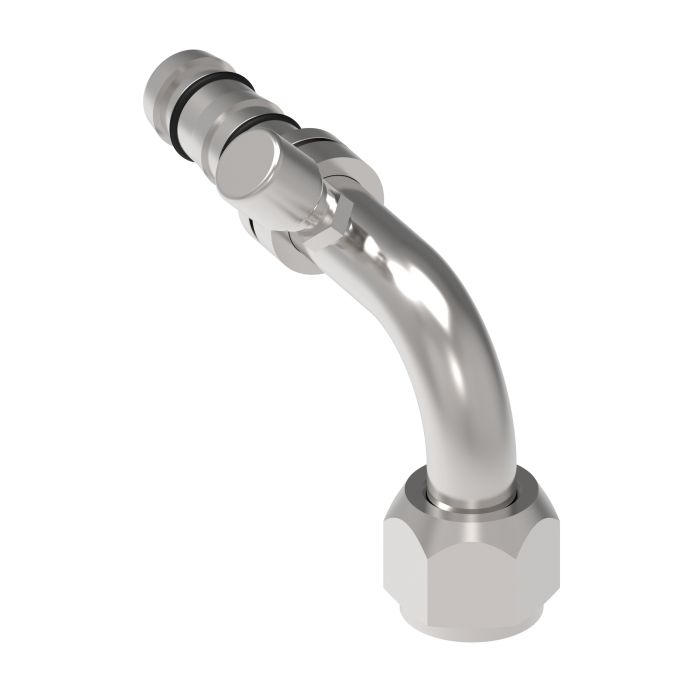

Aeroquip EZ CLIP 90Deg FEM ORing-CHG PT FTG

Description & Features

The Aeroquip EZ CLIP 90Deg FEM ORing-CHG PT FTG is a dependable nipple assembly suitable for a wide range of applications. This carbon steel fitting features a female SAE end type with a size of 0.875 and a -12 hose dash size.

This fitting offers durable performance and is designed to cut assembly times, boosting production efficiency. It is a 90-degree female O-ring short pilot elbow with a 45-degree port rotation.

SKU: FJ3047-1012S

Supplier Part Number (MPN): FJ3047-1012S

Alternate Part Numbers: C1FF94

Specifications

Brand
Danfoss
a Dimensions
4.06 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
2.48 in
Dimensions
4.06 in L x 1.06 in W x 2.6 in H
Drop Dimensions
1.69 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1.06 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3047 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (1)

Question by: Tony K on Dec 8, 2025, 10:55 AM
What kind of material is this fitting made from, and is it gonna hold up in a demanding hydraulic setup?
Answer by: Customer Support on Dec 9, 2025, 12:00 PM
Carbon steel construction throughout, so it's built to handle the kind of stress that comes with typical hydraulic line work. The 90-degree female O-ring elbow design with that 45-degree port rotation gives you some flexibility in tight routing situations where a straight fitting just won't lay right. It's a -12 hose dash size with a 0.875 end size on the SAE female end, and the EZ CLIP system is meant to cut down on assembly time compared to older crimp methods. Solid choice for production environments where you're turning these out in volume.
