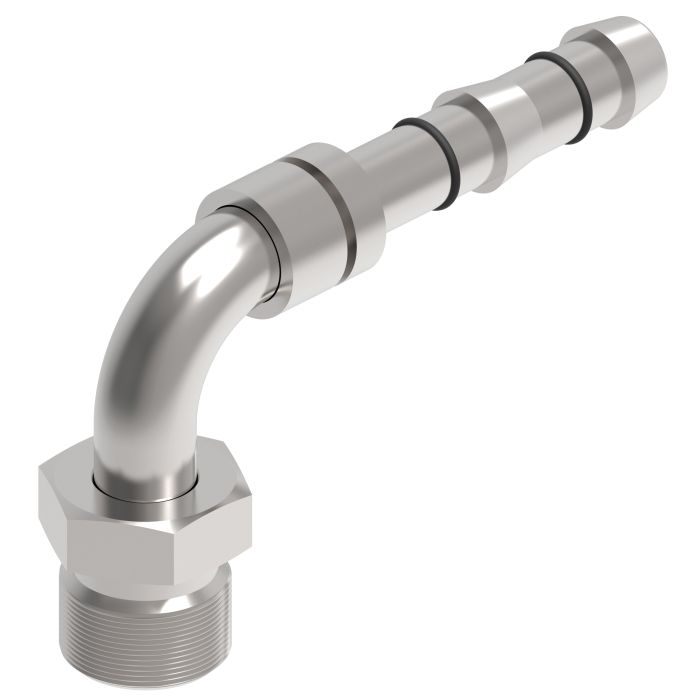

Aeroquip POR 90 Deg Elbow Male Insert O-

Ask A Question

Description & Features

Designed for A/C refrigeration and fluid conveyance assemblies, the Aeroquip POR 90 Deg Elbow Male Insert O-Ring fitting offers a reliable 90-degree elbow configuration with a male UNF end and a -6 hose dash size. The male insert O-ring design promotes a secure, leak-resistant connection suited to a wide range of industrial fluid applications.

Constructed from carbon steel, this nipple assembly is built to withstand the demands of refrigeration and hydraulic environments. The fitting accommodates a 0.625-inch end size and carries a 1.44-inch drop dimension, making it compatible with Danfoss/Eaton E-Z Clip system configurations. Its design helps reduce assembly time without compromising connection integrity.

SKU: FJ3056-01-0606S

Supplier Part Number (MPN): FJ3056-01-0606S

Alternate Part Numbers: C1FL48, MI-08749195, MINO-00015X89573

Specifications

Brand
Danfoss
a Dimensions
2-1/2 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Insert O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
0.98 in
Dimensions
2.85 in L x 0.69 in W x 1.74 in H
Drop Dimensions
1.44 in
End Gender 1
Male
End Size 1
5/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3056 Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Vince P on Feb 6, 2026, 6:40 AM
Will this fitting hold up okay in a refrigeration system?
Answer by: Customer Support on Feb 8, 2026, 6:00 AM
Constructed from carbon steel, this nipple assembly is designed to withstand the demands of refrigeration and hydraulic environments, so it should work well.
