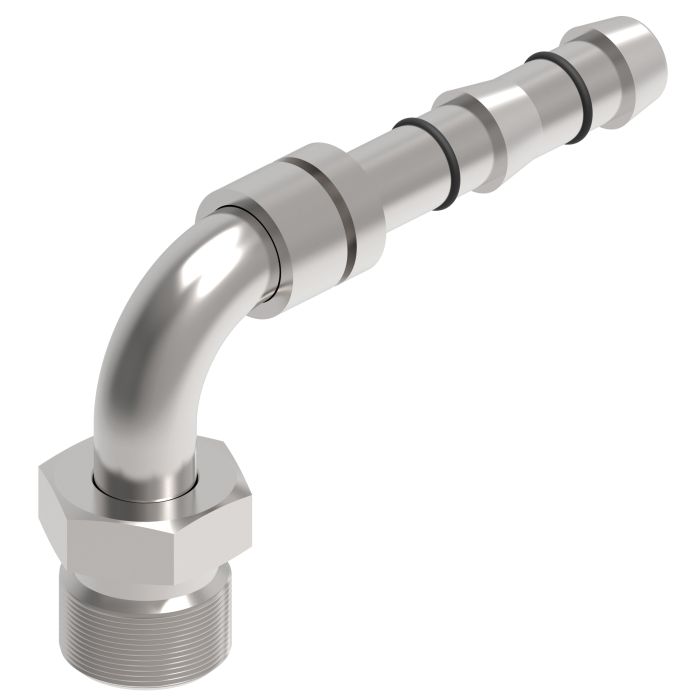

main product photo

Aeroquip POR 90 Deg Elbow Male Insert O-Ring

Ask A Question

Description & Features

Constructed from carbon steel, the Aeroquip Por 90 Deg Elbow Male Insert O-Ring is a nipple assembly designed for reliable hose termination in demanding industrial hydraulic applications. The 90-degree elbow configuration routes hose assemblies cleanly in space-constrained installations, while the male insert O-ring end provides a secure, leak-resistant connection.

This fitting is sized for -8 hose dash with a 0.75-inch UNF male thread end, making it well suited for hose-to-port connections across a wide range of hydraulic systems. Part of the Eaton Aeroquip line, it is built to reduce assembly time without sacrificing connection integrity. The drop dimension of 1.82 inches supports accurate routing in tight assemblies.

SKU: FJ3056-02-0808S

Supplier Part Number (MPN): FJ3056-02-0808S

Alternate Part Numbers: C1FL49, MI-08749200, MINO-00015X89574

Specifications

Brand
Danfoss
a Dimensions
2.74 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male O-ring Long Pilot
Connection Type 1
Hose
Connection Type 2
Male Insert O-ring Long Pilot
Construction Style
Reusable
Cut-Off Factor
1.2 in
Dimensions
3.15 in L x 0.81 in W x 2.17 in H
Drop Dimensions
1.82 in
End Gender 1
Male
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
0.81 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3056 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Hugh H on Mar 24, 2026, 12:33 PM
Got a tight spot under a manifold where the hose needs to make a hard turn without kinking, would this fitting handle that kind of routing situation?
Answer by: Customer Support on Mar 25, 2026, 9:07 PM
A 90-degree elbow is exactly what you want for that kind of scenario. The bend is built into the fitting itself, so the hose exits at a right angle from the port rather than relying on the hose to flex into position. With a drop dimension of 1.82 inches, you can plan your assembly clearances pretty accurately before you ever pick up a wrench.
Question by: Wes E on Dec 6, 2025, 2:24 PM
Just makin' sure, this elbow is steel and not somethin' else, right? Need it for a pretty tough job.
Answer by: Customer Support on Dec 8, 2025, 6:07 AM
Carbon steel is indeed the material used in this Aeroquip elbow, so it should hold up well in demanding hydraulic applications.
