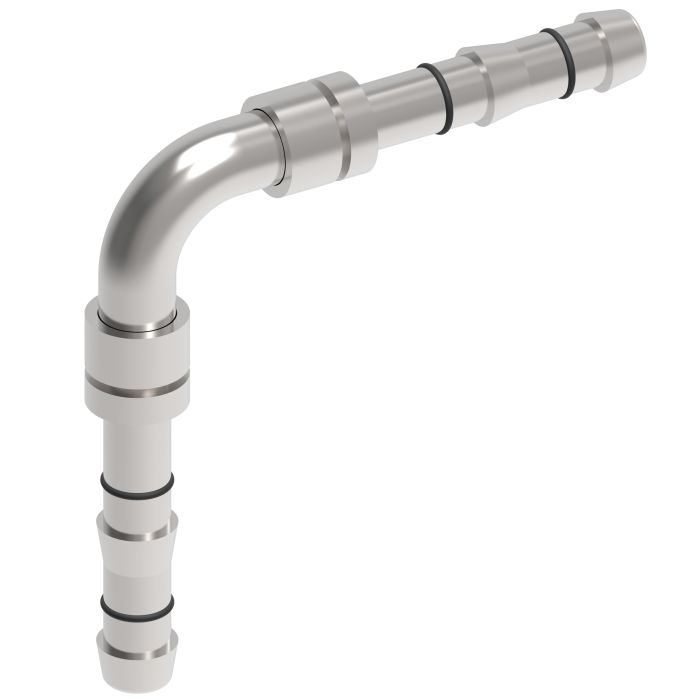

Aeroquip EZ CLIP 90Deg Splicer

Ask A Question

Description & Features

The Eaton Aeroquip EZ CLIP 90Deg Splicer is a carbon steel nipple assembly designed for durability and dependable performance across a wide range of applications. This 90-degree splicer features male ends for line/hose/tube connections, facilitating efficient assembly and enhanced production speeds.

This Aeroquip EZ CLIP 90Deg Splicer offers a drop dimension of 3.0800 and a product width of 0.63. Compatible fluid information and catalog documentation are available via the provided links.

SKU: FJ3058-03-1010S

Supplier Part Number (MPN): FJ3058-03-1010S

Alternate Part Numbers: C1FL53, MI-03499849, MINO-00015F01509

Specifications

Brand
Danfoss
a Dimensions
3.08 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
1.53 in
Dimensions
3.39 in L x 0.63 in W x 3.39 in H
Drop Dimensions
3.08 in
End Gender 1
Male
End Size 1
10
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3058 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Clint H on Sep 18, 2025, 6:21 AM
what's the material on this splicer, and is it gonna hold up in a rough working environment?
Answer by: Customer Support on Sep 19, 2025, 8:26 AM
Carbon steel construction on this one, so it's built to take some abuse in demanding conditions. It's rated as durable and dependable across a wide range of applications, which means it's not a light-duty piece of hardware. For anything involving aggressive fluids or corrosive exposure, you'd want to pull the fluid compatibility document listed with the product before committing to it.
