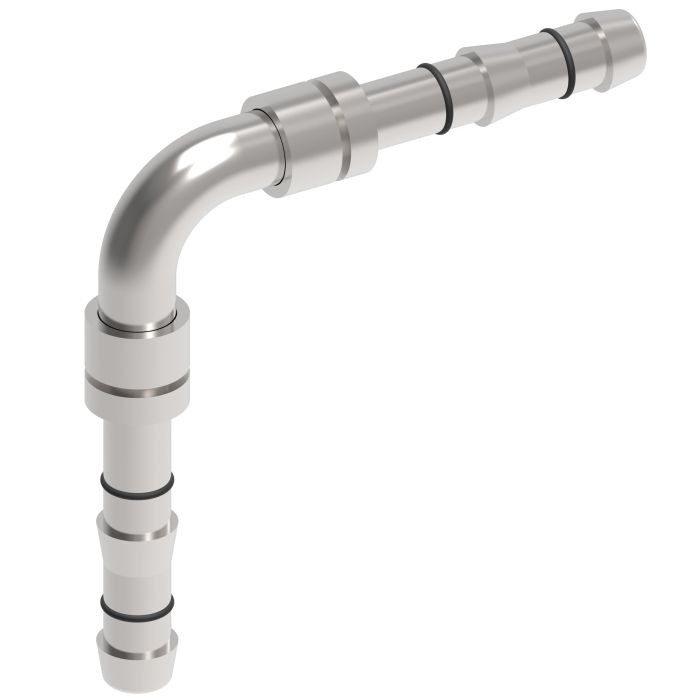

main product photo

Aeroquip EZ CLIP 90Deg Splicer

Ask A Question

Description & Features

Designed for A/C refrigeration and climate control hose assemblies, the Aeroquip Ez Clip 90-Degree Splicer connects two hose lines at a right angle using the Ez Clip fitting system. Constructed from carbon steel, this nipple assembly is built for durability in demanding thermal management applications where reliable, repeatable connections are essential.

Compatible with -12 dash size hose, this male-end splicer supports line-to-line connections at both ends and is engineered to reduce assembly time without sacrificing connection integrity. The Ez Clip design is well suited to production environments where consistent, efficient assembly is a priority across a wide range of hose routing configurations.

SKU: FJ3058-04-1212S

Supplier Part Number (MPN): FJ3058-04-1212S

Alternate Part Numbers: C1FL54, MI-08749217, MINO-00015X89578

Specifications

Brand
Danfoss
a Dimensions
3.68 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Hose
Connection Type 1
Hose
Connection Type 2
Hose
Construction Style
Reusable
Cut-Off Factor
2.11 in
Dimensions
4.1 in L x 0.75 in W x 4.1 in H
Drop Dimensions
3.68 in
End Gender 1
Male
End Size 1
12
Finish
Zinc-Plated
Fitting Type
Splicer
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3058 Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Ross C on Jan 3, 2026, 9:22 AM
got a -12 A/C hose setup and need to turn the line 90 degrees, is this the right splicer for that
Answer by: Customer Support on Jan 4, 2026, 8:51 PM
For a right angle line to line connection in an A/C refrigeration or climate control hose assembly, this Ez Clip 90 degree splicer is built for that job. It is a -12 dash size nipple assembly with male ends, made to join two hose lines at 90 degrees using the Ez Clip fitting system.
