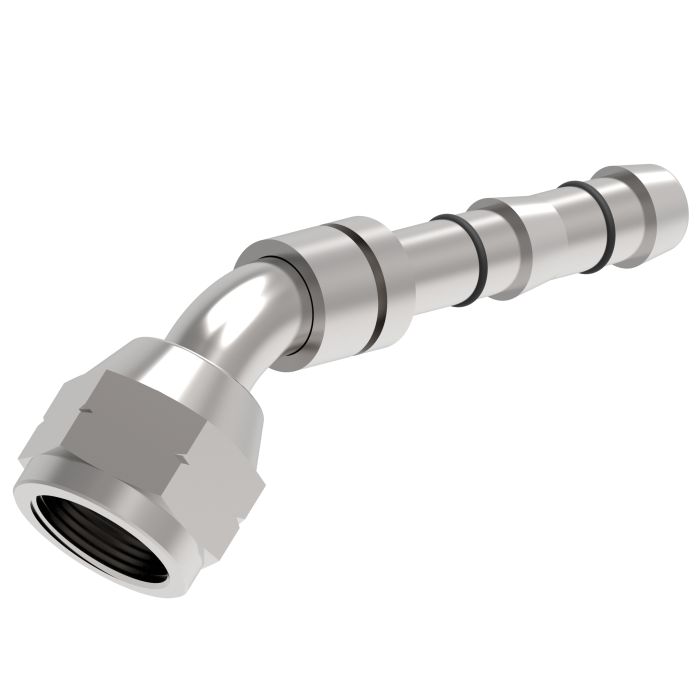

Aeroquip EZ CLIP 45Deg SAE45 FTG

Ask A Question

Description & Features

The Aeroquip EZ CLIP 45Deg SAE45 FTG features a female SAE 45 end for secure connection. Constructed from durable carbon steel, this nipple assembly is designed for a wide range of applications, offering dependable performance and reduced assembly times for increased production.

This Eaton Aeroquip fitting has an end size 1 of 0.875 and a drop dimension of 0.6300. Designed with end type 1 as SAE 45 and end type 2 for line, hose, or tube connections. Hose dash size is -10.

SKU: FJ3059-05-1010S

Supplier Part Number (MPN): FJ3059-05-1010S

Alternate Part Numbers: C1EY62, MI-08749224, MINO-00015X89582

Specifications

Brand
Danfoss
a Dimensions
3.08 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.53 in
Dimensions
4.07 in L x 1 in W x 1.53 in H
Drop Dimensions
0.63 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1 x 1 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3059 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Tommy S on Jan 11, 2026, 6:23 PM
what's the material on this fitting, and is the SAE 45 end the female side?
Answer by: Customer Support on Jan 13, 2026, 6:10 AM
Carbon steel on the body, and yes, the SAE 45 end is female. The other end connects to line, hose, or tube. End size on that SAE 45 side is 0.875, and the hose dash size runs -10. It's a nipple assembly, so both connections are handled in one piece without needing extra adapters stacked in between.
Question by: Harvey W on Mar 21, 2026, 2:54 PM
Reckon this fitting would hold up okay for connecting hydraulic lines on my tractor?
Answer by: Customer Support on Mar 23, 2026, 7:12 AM
Designed for dependable performance across a range of applications, this Aeroquip fitting should work well in hydraulic line connections. Just make sure the hose dash size and end types match your tractor's specifications.
Question by: Harvey D on Oct 15, 2025, 3:49 PM
trying to match up an old fitting, is this one the female SAE 45 with the -10 hose size?
Answer by: Customer Support on Oct 16, 2025, 7:41 PM
The key identifiers are a female SAE 45 end on one side and a -10 hose dash size. It is a nipple assembly with End Type 2 listed for line, hose, or tube connections, and it has an End Size 1 of 0.875.
