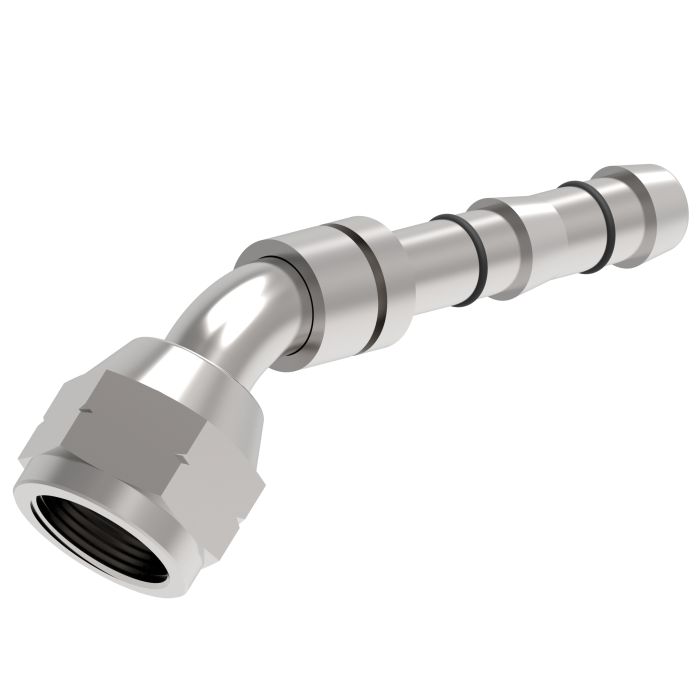

main product photo

Aeroquip EZ CLIP 45Deg SAE45 FTG

Ask A Question

Description & Features

Designed for A/C refrigeration and fluid line connections, this carbon steel nipple assembly features a female SAE 45° end with a hose dash size of -12 and an end size of 0.875 inches. The 45-degree angle geometry supports routing in space-constrained assemblies, while the E-Z Clip design is built to cut assembly times and support higher production throughput.

The Aeroquip Ez Clip 45Deg Sae45 Ftg accommodates a wide range of industrial and refrigeration applications, with a line/hose/tube secondary end connection suited to flexible assembly configurations. At 1 inch in product width with a drop dimension of 0.6300, it fits within compact installation envelopes. Carbon steel construction provides reliable durability across demanding service conditions.

SKU: FJ3059-06-1012S

Supplier Part Number (MPN): FJ3059-06-1012S

Alternate Part Numbers: C1EY63

Specifications

Brand
Danfoss
a Dimensions
3.11 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Flare Swivel
Construction Style
Reusable
Cut-Off Factor
1.53 in
Dimensions
4.1 in L x 1 in W x 2 in H
Drop Dimensions
0.63 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
1 x 1 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3059 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (1)

Question by: Johnny J on Dec 12, 2025, 12:33 PM
What kinda fluids can this fitting handle without breakin' down?
Answer by: Customer Support on Dec 14, 2025, 6:02 AM
This fitting is built to work with A/C refrigeration and other fluids commonly used in industrial applications. For specific fluid compatibility, it's best to check the fluid compatibility document provided by Eaton.
