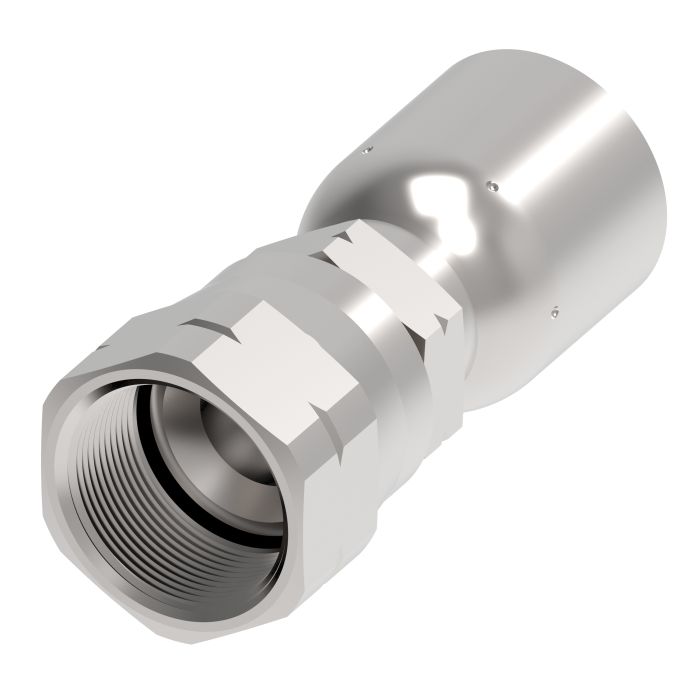

main product photo

DANFOSS / EATON Ftng (perm), 100R5 CRIMP

Ask A Question

Description & Features

Designed for permanent crimp installations on SAE 100R5 hose, the Danfoss / Eaton FJ3094 Series Crimp Hose Fitting features a SAE 45° swivel end on one side and a hose/line connection on the other. Built from carbon steel with a -4 dash size and a 7/16 in. female swivel end, this fitting is suited for hydraulic hose assemblies where a reliable, leak-resistant connection is required at a 45° angle.

Manufactured under the Aeroquip sub-brand, the fitting includes Dura-Kote plating for corrosion resistance and is system-engineered to support extended hose assembly service life. The design focuses on consistent performance and maximum uptime in demanding hydraulic applications. With a package weight of 0.08 lb, it is a compact, single-piece fitting assembly intended for professional hydraulic assembly use.

SKU: FJ3094-0404S

Supplier Part Number (MPN): FJ3094-0404S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.88 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1.1 in
Dimensions
1.88 in L x 0.68 in W x 0.68 in H
End Gender 1
Female
End Size 1
7/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H250H Series Hoses
Hex Size
0.563 x 0.438 in
Hose Dash Size
04
Inside Diameter
0.14 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
A
Series
FJ3094 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Product Questions & Answers (1)

Question by: Tommy L on Jan 6, 2026, 6:17 AM
Will this fitting hold up alright in a hydraulic system that sees some pretty rough use?
Answer by: Customer Support on Jan 8, 2026, 6:19 AM
Dura-Kote plating on this fitting is there to give you superior corrosion resistance and help it last in demanding hydraulic applications. It's system-engineered for extended service life.
