AEROQUIP FITTING

Description & Features

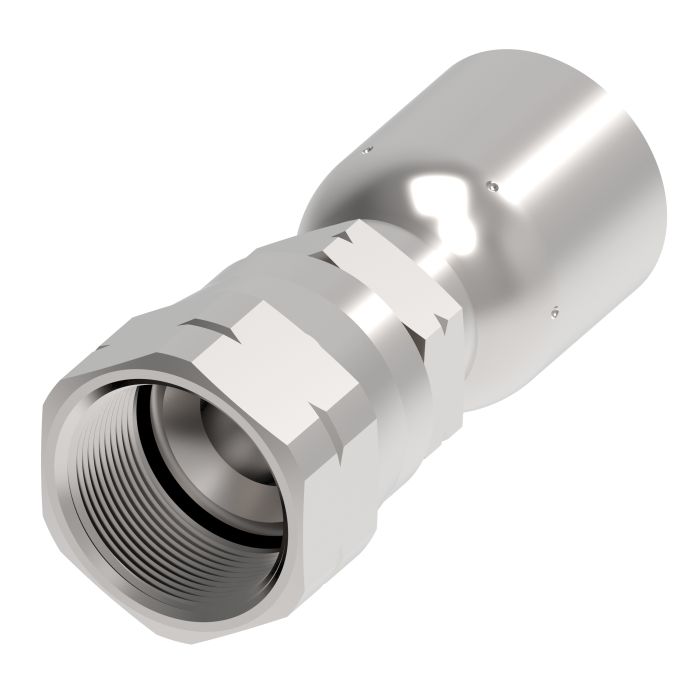

Part of the Aeroquip FJ3094 Series, this carbon steel crimp hose fitting features a female SAE 45° swivel end designed for reliable line and hose connections in demanding hydraulic applications. The swivel configuration simplifies installation by allowing the fitting to rotate during assembly, reducing stress on the hose and helping maintain alignment in tight or congested routing environments.

Dura-Kote plating provides strong corrosion resistance, extending service life in harsh conditions. The fitting is system-engineered to support longer hose assembly life and is built to deliver consistent performance with maximum uptime in mind. As a fitting assembly, it is well suited for hydraulic systems where connection integrity and durability are priorities.

SKU: FJ3094-0405S

Supplier Part Number (MPN): FJ3094-0405S

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.89 in	Compatible Hose ID 0.31 in	Connection Size 1 1/4 in	Connection Size 2 5 mm	Connection Type Female SAE Flared Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg Swivel	Construction Style Crimp	Cut-Off Factor 1.1 in	End Gender 1 Female	End Size 1 04	Finish Zinc-Plated	Fitting Type Hose Fitting	Hex Size 0.563 in	Hose Dash Size 05	Inside Diameter 3/16 in	Material Steel	Material Construction Carbon Steel	Series FJ3094 Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Thread Type UNF

Product Questions & Answers (1)

Question by: Lynn M on Nov 14, 2025, 2:42 PM

Reckon this fitting will hold up if I'm usin' it for somethin' that's runnin' pretty much all day?

Answer by: Customer Support on Nov 15, 2025, 7:53 PM

Dura-Kote plating gives this Aeroquip fitting good corrosion resistance, which should help it last even under pretty constant use. It's designed for maximum uptime.
