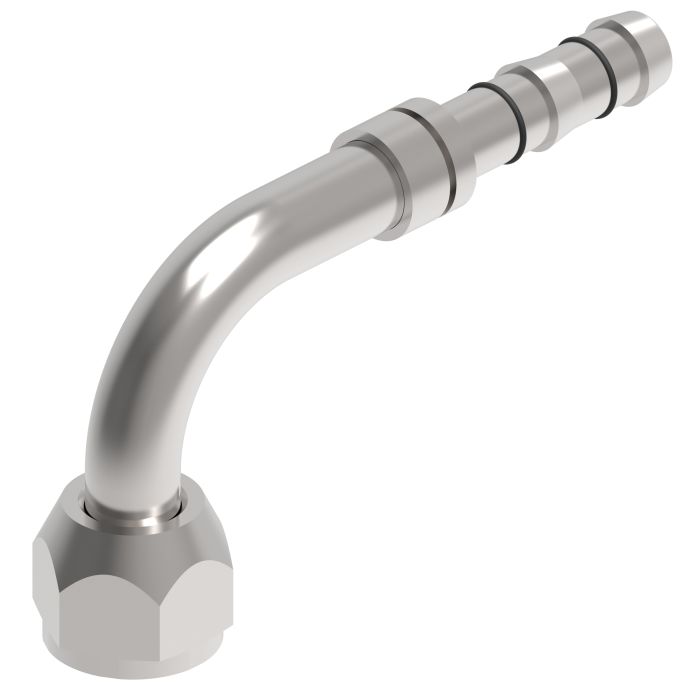

main product photo

Aeroquip EZ CLIP 90Deg FEM ORing Metric FTG

Ask A Question

Description & Features

Designed for A/C refrigeration and climate control circuit assemblies, this carbon steel 90-degree elbow features a female O-ring long pilot metric thread end for secure, leak-resistant connections at the -8 hose dash size. The 90-degree configuration suits installations where routing constraints require a directional change at the hose-to-fitting junction.

The Aeroquip Ez Clip 90Deg Fem Oring Metric Ftg is part of Eaton Aeroquip's E-Z Clip system, engineered to reduce assembly time without sacrificing connection integrity. With a drop dimension of 2.0 and a product width of 0.94, it fits within compact assembly envelopes. The nipple assembly construction is durable across a wide range of refrigerant circuit applications, and the metric thread end type accommodates metric-standard line connections.

SKU: FJ3111-01-0808S

Supplier Part Number (MPN): FJ3111-01-0808S

Alternate Part Numbers: C1GJ74

Specifications

Brand
Danfoss
a Dimensions
3.77 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Tube O-ring Long Pilot, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Long Pilot
Construction Style
Crimp
Cut-Off Factor
2.23 in
Drop Dimensions
2 in
End Gender 1
Female
End Size 1
08
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
0.94 in
Hose Dash Size
08
Inside Diameter
0.32 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3111 Series
Thread Sealant
Without Thread Sealant
Thread Size
M20x1.5

Product Questions & Answers (3)

Question by: Ralph C on Sep 17, 2025, 9:14 PM
What kind of material is this fitting made out of?
Answer by: Customer Support on Sep 19, 2025, 7:07 AM
It's made from carbon steel, so it's durable for refrigeration and climate control uses.
Question by: Dustin T on Oct 25, 2025, 10:33 AM
We're putting together an A/C refrigeration circuit and need a 90-degree fitting that'll work with metric line connections at the -8 hose size. This the right part for that kind of setup?
Answer by: Customer Support on Oct 26, 2025, 5:09 PM
For A/C refrigeration and climate control circuit assemblies using metric-standard line connections at the -8 hose dash size, yes, that's exactly what this fitting is built for. The female O-ring long pilot metric thread end gives you a secure, leak-resistant connection, and the 90-degree elbow handles directional changes right at the hose-to-fitting junction. Carbon steel construction holds up well across the range of refrigerant circuit applications it's intended for.
Question by: Kurt D on May 7, 2025, 2:21 PM
trying to tuck an A/C hose in a tight spot. is this the 90 degree elbow for -8 hose with a metric female o-ring end?
Answer by: Customer Support on May 9, 2025, 1:20 PM
Built as a 90 degree elbow in Eaton Aeroquip’s E-Z Clip system, it’s a -8 hose dash size fitting with a female O-ring long pilot metric thread end, meant for A/C refrigeration and climate control circuit assemblies where you need a turn right at the hose-to-fitting connection.
