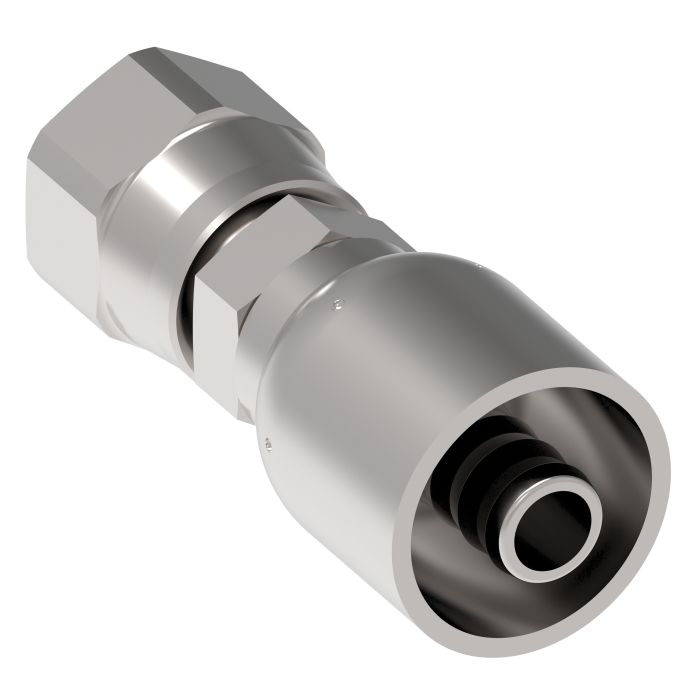

main product photo

100R5 FITTING

Ask A Question

Description & Features

Manufactured by Aeroquip, this SAE 100R5 fitting is designed for use with 100R5 hydraulic hose assemblies in medium-pressure hydraulic circuits. The 100R5 standard specifies textile-reinforced hose, and fittings in this series are matched accordingly to maintain assembly integrity across the connection.

Part number FJ3114-0806S indicates specific end configurations and sizing within Aeroquip's fitting line. As a web-stocked item, this fitting is available for direct order to support maintenance, repair, and new assembly requirements in industrial hydraulic applications.

SKU: FJ3114-0806S

Supplier Part Number (MPN): FJ3114-0806S

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
2.14 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.35 in
Dimensions
2.14 in L x 0.88 in W x 0.88 in H
End Size 1
08
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H250H Series Hoses
Hex Size
11/16 x 7/8 in
Hose Dash Size
06
Inside Diameter
0.23 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40
Series
FJ3114 Series
Thread Size
3/4-16
Thread Type
UNF

Similar Products

Model Number Connection Size 1 Connection Size 2 Hose Dash Size Price Action
Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/8 - 12 Female JIC 37 deg Flare Swivel, -20 Hose, Straight

FJ3114-2020S Steel JIC Crimp Fitting

1-1/4 in

1-1/4 in

20

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/16 - 12 Female JIC 37 deg Flare Swivel, -16 Hose, Straight

FJ3114-1616S Steel JIC Crimp Fitting

1 in

1 in

16

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, Straight

FJ3114-1010S Steel JIC Crimp Fitting

5/8 in

5/8 in

10

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, Straight

FJ3114-0808S Steel JIC Crimp Fitting

1/2 in

1/2 in

08

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-7/8 - 12 Female JIC 37 deg Flare Swivel, -24 Hose, Straight

FJ3114-2424S Steel JIC Crimp Fitting

1-1/2 in

1-1/2 in

24

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, Straight

FJ3114-0606S Steel JIC Crimp Fitting

3/8 in

3/8 in

06

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-1/16 - 12 Female JIC 37 deg Flare Swivel, -12 Hose, Straight

FJ3114-1212S Steel JIC Crimp Fitting

3/4 in

3/4 in

12

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, Straight

FJ3114-0404S Steel JIC Crimp Fitting

1/4 in

1/4 in

04

AEROQUIP STR 1/4 FJIC TO -5 HOSE

FJ3114-0405S

1/4 in

5/16 in

05

Aeroquip SAE37 100R5 Crimp FTG

FJ3114-0505S

5/16 in

5/16 in

05

AEROQUIP STR 3/8 FJIC TO -8 HOSE

FJ3114-0608S

3/8 in

1/2 in

08

Danfoss / Eaton Aeroquip -8 FemaleJIC 37Swivel 100R5 Crimp Fitting

FJ3114-0810S

1/2 in

5/8 in

10

FJ3114-1008S

FJ3114-1008S

5/8 in

1/2 in

08

AEROQUIP STR 3/4 FJIC TO -16 HOSE

FJ3114-1216S

3/4 in

1 in

16

Aeroquip SAE37 100R5 Crimp Fitting -32 F

FJ3114-3232S

2 in

2 in

32

Product Questions & Answers (1)

Question by: Tommy M on Dec 11, 2025, 11:56 AM
So, this here's an Aeroquip fitting... what kinda pressure we talkin' 'bout?
Answer by: Customer Support on Dec 12, 2025, 2:27 PM
As an SAE 100R5 fitting, it's best suited for medium-pressure hydraulic systems where you're using textile-reinforced hose. It's made to keep everything tight and reliable in those setups.
