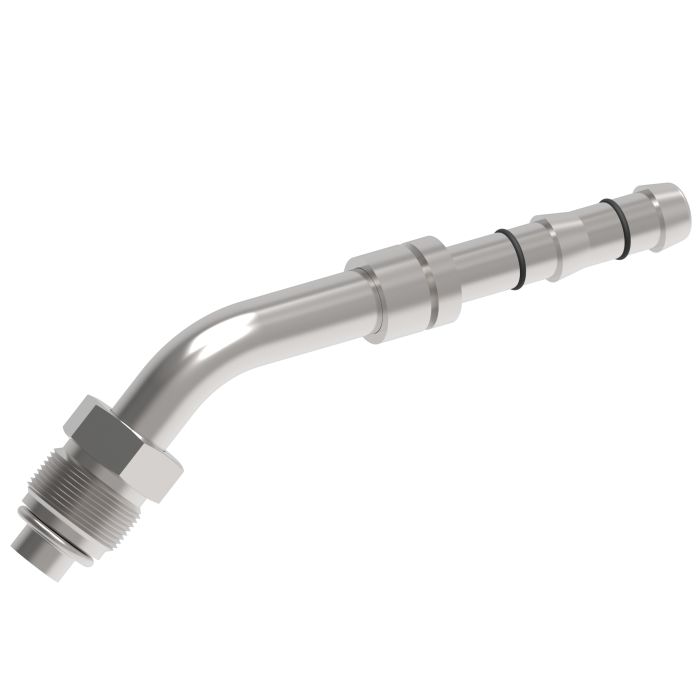

main product photo

Danfoss / Eaton Aeroquip E-Z CLIP SYSTEM -10 Male O-Ring (Short PILOT

Ask A Question

Description & Features

This Danfoss / Eaton Aeroquip E-Z Clip System -10 Male O-Ring (Short Pilot) is designed for a broad spectrum of applications providing dependable efficiency and long-lasting durability. The system effectively reduces assembly times thereby boosting production.

Constructed from high-quality carbon steel this male O-ring fitting features an inverted end type and a line/hose/tube connection. Notably it has a drop dimension of 1.4600 and an end size of 0.875. The product's width is 0.88 ensuring robust performance in various industrial setups.

Ideal for professionals seeking reliable efficient solutions this fitting meets the compliance standards as indicated by its ECCN: EAR99 classification. Although it does not include a battery blades or a case the system promises optimum performance without the need for additional accessories.

Supplier Part Number: FJ3116-02-1010S

Specifications

Brand
Danfoss
a Dimensions
4.65 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.1 in
Dimensions
4.85 in L x 0.88 in W x 2.06 in H
Drop Dimensions
1.46 in
End Gender 1
Male
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3116 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-18

Product Questions & Answers (2)

Question by: Wayne W on Jun 22, 2025, 4:37 PM
Got a -10 hose line I'm trying to get fitted out faster on the assembly side. Does this clip system actually cut down on how long it takes to put things together?
Answer by: Customer Support on Jun 23, 2025, 7:02 PM
That's exactly what the E-Z Clip system is built around. The whole point of the design is to reduce assembly time compared to traditional hose fittings, which adds up fast when you're doing volume work. Carbon steel construction keeps it solid once it's in place, so you're not trading speed for durability. The short pilot end type on this one works with the -10 hose dash size, and the 0.875 end size is what you'll want to match up on your line side before ordering.
Question by: Larry B on Oct 7, 2025, 7:56 PM
What size is this Aeroquip fitting, as far as the hose goes?
Answer by: Customer Support on Oct 9, 2025, 9:46 AM
It's made to work with -10 size hose.
