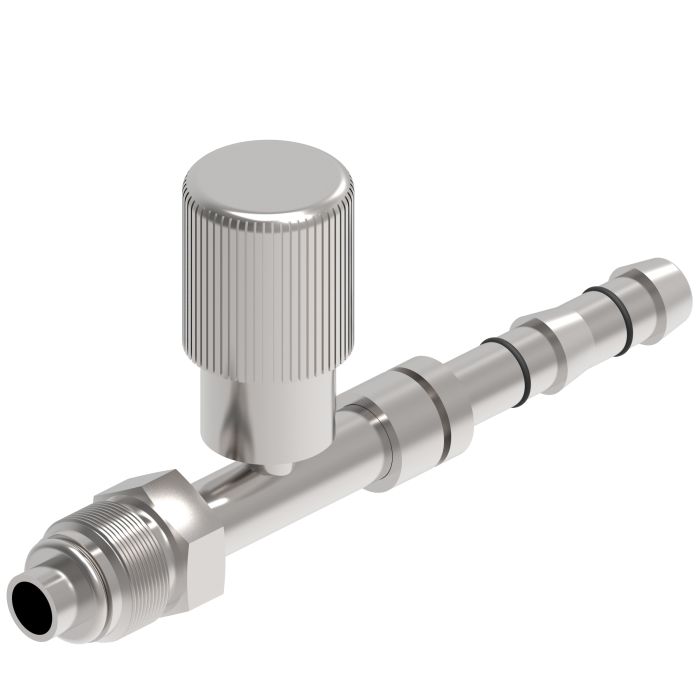

Aeroquip EZ CLIP STR M ORing-HIGH SIDE CHG PT

Ask A Question

Description & Features

Designed for A/C refrigeration service applications, this carbon steel fitting assembly integrates a male O-ring connection with an R-134a high side charge port, making it well suited for refrigerant line work in automotive and industrial climate control systems. The straight configuration connects an inverted end to a line, hose, or tube end with a -10 hose dash size and an 0.875-inch end size.

The Aeroquip Ez Clip Str M Oring-High Side Chg Pt is part of Eaton Aeroquip's E-Z Clip system, a platform known for reducing assembly time and supporting consistent, repeatable connections across a wide range of refrigeration service configurations. The fitting assembly format means all components ship together ready for installation.

SKU: FJ3131-03-1010S

Supplier Part Number (MPN): FJ3131-03-1010S

Alternate Part Numbers: C1FL59, MI-08749230, MINO-00015X89584

Specifications

Brand
Danfoss
a Dimensions
4.34 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Crimp
Cut-Off Factor
2.61 in
Dimensions
4.34 in L
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3131 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-18

Product Questions & Answers (1)

Question by: Gary C on May 30, 2025, 5:53 PM
Will this here fitting work for a regular ol' AC unit on my truck?
Answer by: Customer Support on May 31, 2025, 6:21 PM
This fitting assembly is designed for A/C refrigeration service, so it should work for your truck's AC unit. It's made for refrigerant line work.
