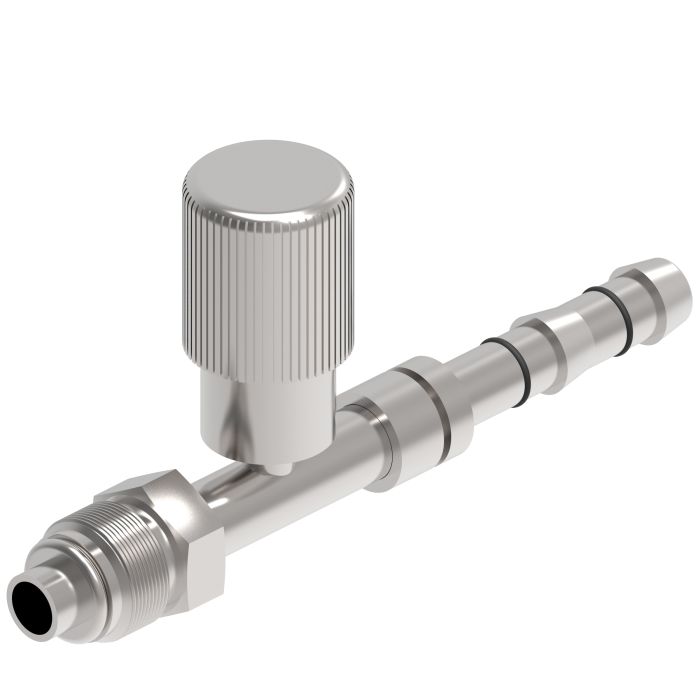

Aeroquip EZ CLIP STR M ORing-LOW SIDE CH

Ask A Question

Description & Features

Designed for A/C refrigeration systems using R-134a refrigerant, this carbon steel nipple assembly provides a straight male O-ring connection with a low-side service port. The inverted end type on the primary connection pairs with a line/hose/tube end, making it well suited for EZ Clip hose assembly configurations. The 0.875-inch end size corresponds to a -10 hose dash size, giving technicians a clear reference for matching hose and fitting dimensions.

The Aeroquip Ez Clip Str M Oring-Low Side Ch is built to fit a wide range of A/C and refrigeration assembly applications, and the EZ Clip design helps reduce assembly time compared to traditional crimp methods. Carbon steel construction provides reliable durability in demanding industrial and mobile HVAC environments.

SKU: FJ3132-01-1010S

Supplier Part Number (MPN): FJ3132-01-1010S

Alternate Part Numbers: C1FL60

Specifications

Brand
Danfoss
a Dimensions
4.43 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.7 in
Dimensions
4.43 in L x 0.88 in W x 1.01 in H
End Gender 1
Male
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
A
Series
FJ3132 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-18

Product Questions & Answers (1)

Question by: Cody W on Jan 7, 2026, 8:28 PM
How durable is this thing, really? I'm gonna be using it in a pretty rough environment.
Answer by: Customer Support on Jan 9, 2026, 6:55 AM
Carbon steel construction makes this nipple assembly pretty durable, and it should hold up well in demanding industrial and mobile HVAC environments.
