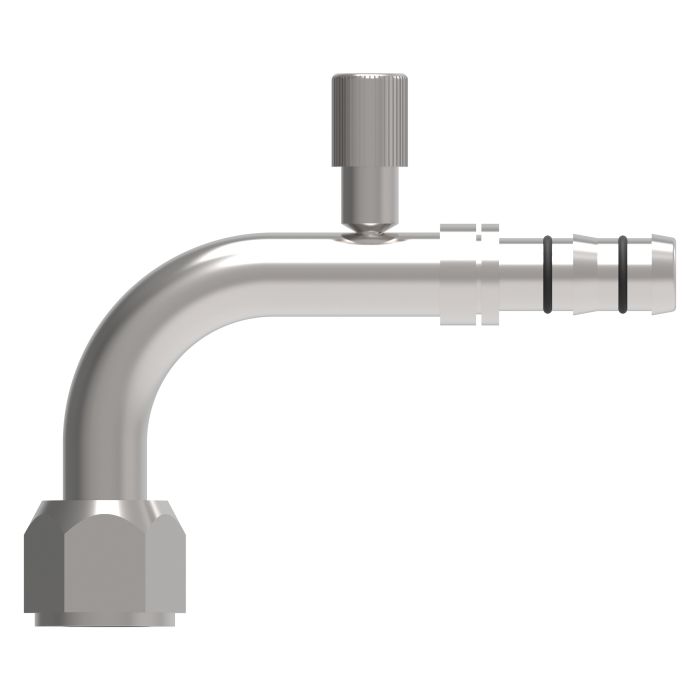

AEROQUIP 90 DEG ELBOW FEMALE SAE 45 DEG

Ask A Question

Description & Features

This Aeroquip 90-degree elbow features a female SAE 45-degree connection, suitable for a wide range of applications where durable and dependable performance is required.

This nipple assembly is constructed from carbon steel and offers a drop dimension of 1.2800. The end size 1 measures 0.625, with a hose dash size of -6.

SKU: FJ3133-01-0606S

Supplier Part Number (MPN): FJ3133-01-0606S

Alternate Part Numbers: C1EY64

Specifications

Brand
Danfoss
a Dimensions
4.35 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
2.82 in
Dimensions
4.72 in L x 0.75 in W x 2.05 in H
Drop Dimensions
1.28 in
End Gender 1
Female
End Size 1
5/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
3/4 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3133 Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Shane D on Jan 12, 2026, 2:52 PM
Reckon this elbow fitting would hold up okay in a hydraulic system on a tractor? I need something that can handle a little vibration.
Answer by: Customer Support on Jan 14, 2026, 6:15 AM
Constructed from carbon steel, this nipple assembly is durable enough to withstand the vibrations common in tractor hydraulic systems. It's designed for dependable performance across a range of applications.
