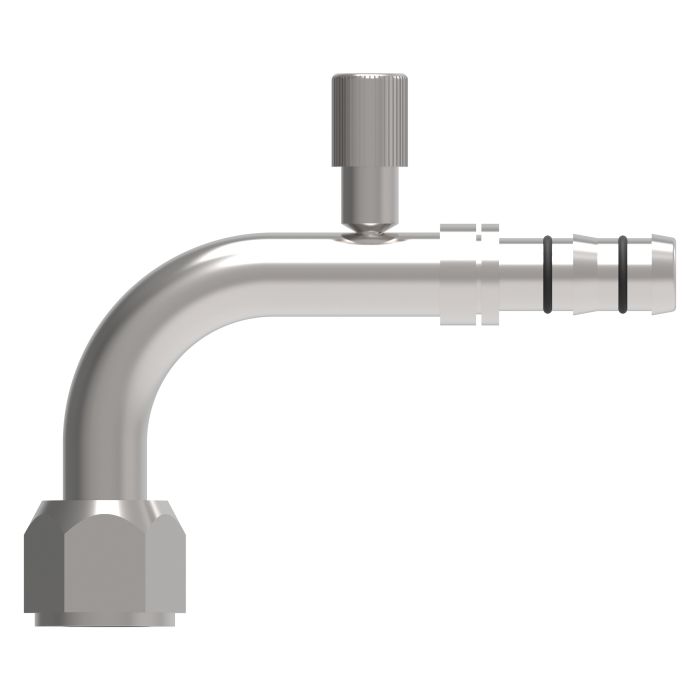

Aeroquip 90 Deg Elbow FemaleSAE 45 Deg Flare W/R134A HS CHG PRT

Ask A Question

Description & Features

Designed for R-134a air conditioning and refrigeration service, this carbon steel 90-degree elbow from Eaton Aeroquip integrates a high-side charge port with a female SAE 45-degree flare end connection. The 90-degree orientation accommodates routing in tight or angled installations where straight fittings are not practical, while the built-in charge port supports direct system servicing without additional adapters.

The Aeroquip 90 Deg Elbow Female SAE 45 Deg Flare W/R134A HS Chg Prt is part of the Eaton Aeroquip E-Z Clip system for A/C and refrigeration applications. With a -8 hose dash size and a 0.75-inch end size, it is suited for compatible hose and tube assemblies. Carbon steel construction provides reliable durability across a range of service conditions, and the fitting is engineered to reduce assembly time in production environments.

SKU: FJ3133-02-0808S

Supplier Part Number (MPN): FJ3133-02-0808S

Alternate Part Numbers: C1EY65

Specifications

Brand
Danfoss
a Dimensions
4.61 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3.07 in
Dimensions
5.05 in L x 0.88 in W x 2.4 in H
Drop Dimensions
1.53 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3133 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Earl P on Feb 16, 2026, 6:36 AM
got a tight routing situation on an R-134a system and a straight fitting just ain't gonna cut it. this the kind of elbow that handles that?
Answer by: Customer Support on Feb 18, 2026, 6:37 AM
For angled or cramped installation runs, the 90-degree orientation on this fitting is exactly what makes it useful. Rather than forcing a straight fitting into a bend that stresses the hose or line, the elbow lets you route cleanly around obstacles or into tight spaces without fighting the geometry. It's built for R-134a air conditioning and refrigeration service, so if that's the refrigerant you're working with, the application lines up. It's a -8 hose dash size with a 0.75-inch end, so just make sure your hose and tube assembly matches those dimensions before you button it up.
Question by: Hank H on Dec 9, 2025, 2:17 PM
Will this here fitting work with my R134A system alright?
Answer by: Customer Support on Dec 11, 2025, 6:20 AM
Designed for R-134a air conditioning and refrigeration service, this Aeroquip elbow fitting should be compatible with your system, provided you're working with the correct hose size.
