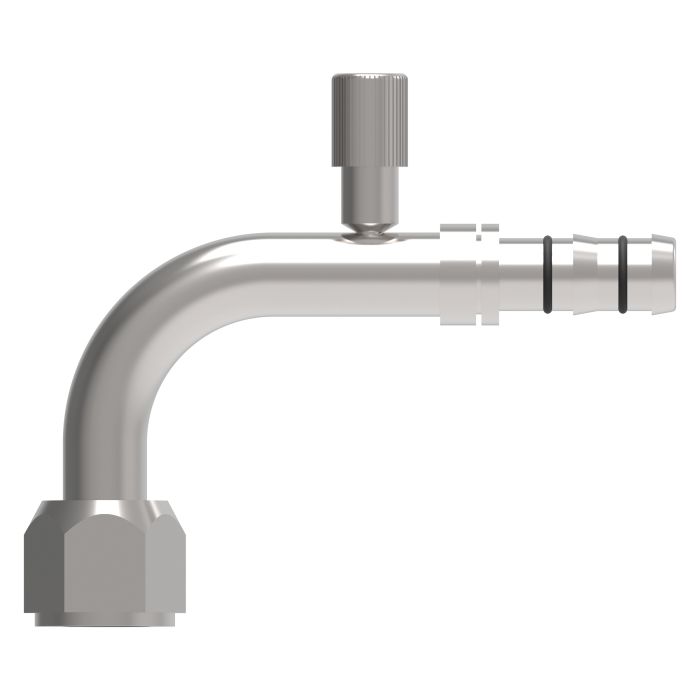

Aeroquip 90 Deg Elbow FemaleSAE 45 Deg Flare W/R134A HS CHG PRT

Ask A Question

Description & Features

Designed for efficiency and durability, the Eaton Aeroquip 90 Degree Elbow Female SAE 45 Degree Flare with R134A High Side Charge Port is a reliable choice for a range of industrial applications. Constructed from robust carbon steel, this fitting ensures long-lasting performance in demanding environments. The elbow fitting features a female SAE 45-degree flare, providing a secure connection for 0.875-inch hose ends, and is compatible with the R134A refrigerant, making it ideal for A/C and refrigeration systems.

The Aeroquip fitting is engineered to reduce assembly times and boost production efficiency. Its innovative design accommodates various line, hose, and tube configurations, ensuring versatility and adaptability in diverse setups. With a drop dimension of 1.8400 and a hose dash size of -10, this fitting offers precise compatibility and fit. Trusted by professionals, the Aeroquip brand is synonymous with quality and performance in hydraulic systems.

SKU: FJ3133-03-1010S

Supplier Part Number (MPN): FJ3133-03-1010S

Alternate Part Numbers: C1EY66

Specifications

Brand
Danfoss
a Dimensions
4.8 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female Tube, Hose
Connection Type 1
Hose
Connection Type 2
Female Tube O-ring Short Pilot
Construction Style
Reusable
Cut-Off Factor
3-1/4 in
Dimensions
5.24 in L x 0.88 in W x 2.7 in H
Drop Dimensions
1.84 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3133 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14

Product Questions & Answers (2)

Question by: Harvey H on Jan 1, 2026, 3:15 PM
got a -10 hose with a 0.875 inch end, does this elbow match up or am i off a size
Answer by: Customer Support on Jan 3, 2026, 7:52 AM
The key callouts on this one are a hose dash size of -10 and an End Size 1 of 0.875 with a female SAE 45 degree flare. If your setup is a -10 hose end that mates to a female SAE 45 flare in that 0.875 size, it lines up with the dimensions given for this fitting.
Question by: Dwayne B on Jan 17, 2026, 9:03 AM
Got a R134A high side charge port setup I'm trying to tie into, will this fitting work with a -10 hose end or am I looking at the wrong part?
Answer by: Customer Support on Jan 19, 2026, 6:51 AM
For a -10 hose dash size, you're in the right place. The female SAE 45-degree flare end is sized at 0.875 inches, which lines up directly with -10 hose ends. The R134A high side charge port is built right into the fitting, so it's already set up for that style of A/C connection without needing any additional hardware.
