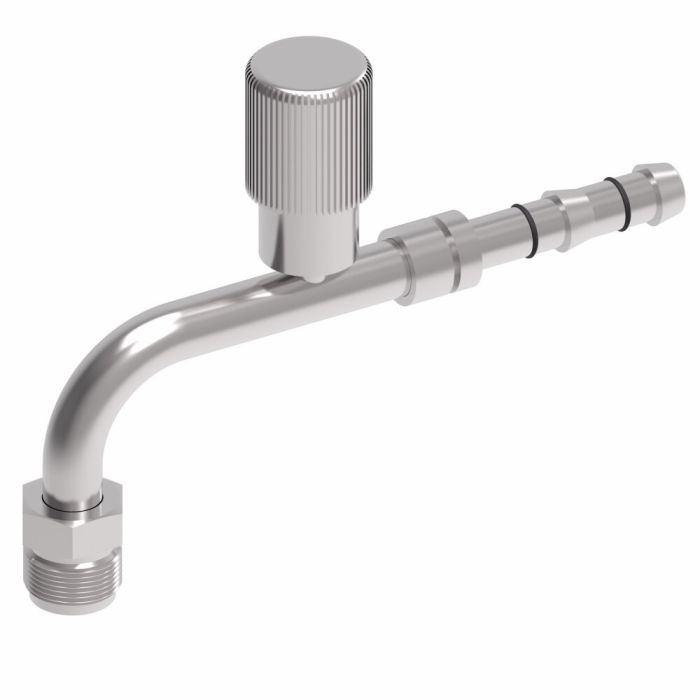

main product photo

Aeroquip EZ CLIP 90Deg Male ORing-LOW SIDE CHG PT

Ask A Question

Description & Features

The Aeroquip EZ Clip 90Deg Male ORing-LOW SIDE CHG PT manufactured by Danfoss Power Solutions (II LLC Aeroquip) is designed for durability and reliability across a broad range of applications. Constructed from carbon steel it ensures long-lasting performance and dependability.

Featuring a male ORing fitting with a 0.875-inch SAE end size and a hose dash size of -10 this component aids in reducing assembly times and enhancing production efficiency. Its compact width of 0.88 inches and the specific drop dimension of 2.3500 ensure a perfect fit in various industrial settings.

It does not require additional tools such as a mandrel or special connectors streamlining the installation process.

Supplier Part Number: FJ3135-01-1010S

Specifications

Brand
Danfoss
a Dimensions
4.81 in
Compatible Hose ID
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male 37 deg O-ring Short Pilot
Construction Style
Crimp
Cut-Off Factor
3-1/4 in
Drop Dimensions
2 in
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3135 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-18

Product Questions & Answers (2)

Question by: Brent R on Oct 30, 2025, 10:03 AM
does this fitting work without needin any special tools to get it put together? asking cause we run a pretty tight shop and dont always have extra equipment layin around
Answer by: Customer Support on Oct 31, 2025, 3:00 PM
No mandrel or special connectors are required for assembly. The EZ Clip design is built to go together with standard shop setup, which is a big part of why it cuts down on assembly time. Straightforward installation without hunting down extra tooling.
Question by: Hubert A on Mar 26, 2026, 4:03 PM
Reckon this'll hold up alright in a hydraulic system for farm equipment, or is it more for lighter duty stuff?
Answer by: Customer Support on Mar 27, 2026, 6:44 PM
Constructed from carbon steel, this Aeroquip EZ Clip fitting assembly is durable enough for a broad range of applications, including some heavy-duty industrial uses.
