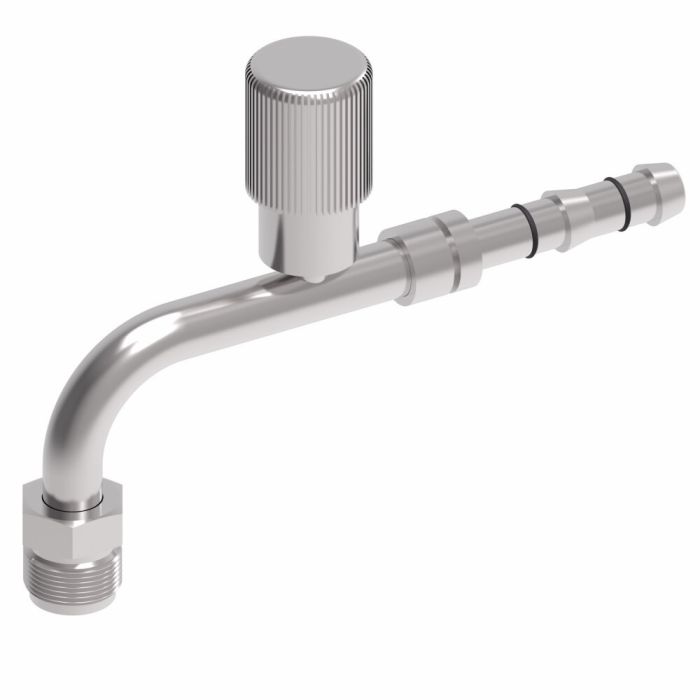

main product photo

Aeroquip EZ CLIP 90Deg Male ORing-LOW SIDE CHG PT

Ask A Question

Description & Features

Designed for A/C refrigeration service applications, the Aeroquip Ez Clip 90Deg Male Oring-Low Side Chg Pt is a 90-degree male O-ring fitting with an integrated R-134a low-side charge port. Built from carbon steel, it is constructed to handle the demands of automotive and industrial refrigeration service environments where reliable sealing and quick assembly are priorities.

The fitting uses the Eaton Aeroquip E-Z Clip system, compatible with -12 hose dash size and an SAE male end with a 0.875-inch end size. The 90-degree configuration suits routing applications where straight fittings are not practical, and the short pilot male O-ring design supports a secure, leak-resistant seal. Features include reduced assembly time and broad application compatibility across common A/C refrigerant service setups.

SKU: FJ3135-02-1012S

Supplier Part Number (MPN): FJ3135-02-1012S

Alternate Part Numbers: C1FL66, MI-08749233, MINO-00015X89585

Specifications

Brand
Danfoss
a Dimensions
4.81 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Hose, Male O-ring Short Pilot
Connection Type 1
Hose
Connection Type 2
Male 37 deg O-ring Short Pilot
Construction Style
Crimp
Cut-Off Factor
3-1/4 in
Drop Dimensions
2 in
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
7/8 in
Hose Dash Size
12
Inside Diameter
0.475 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3135 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-18

Product Questions & Answers (3)

Question by: Rusty R on Apr 19, 2025, 3:40 PM
Will this fitting work with standard R134a systems?
Answer by: Customer Support on Apr 20, 2025, 5:22 PM
Yes it will. This fitting includes an integrated R-134a low-side charge port, making it directly compatible with those systems.
Question by: Lyle S on Apr 2, 2026, 8:05 AM
trying to replace a low side r134a charge port fitting, is this one the 90 degree male o-ring style?
Answer by: Customer Support on Apr 4, 2026, 6:11 AM
For A/C refrigeration service work, it’s a 90 degree male O-ring fitting that has an integrated R-134a low side charge port built into it, so it matches that general style and function.
Question by: Connie H on Apr 27, 2025, 8:44 PM
Got a 90-degree fitting I need for an R-134a low-side charge port on an A/C line and the hose is a -12 dash size. This the right one?
Answer by: Customer Support on Apr 29, 2025, 9:12 AM
For a -12 hose dash size on an R-134a low-side service application, yes, that lines up exactly with what this fitting is built for. It uses the Eaton Aeroquip E-Z Clip system, has an integrated low-side charge port, and the male end is SAE at 0.875 inches. The 90-degree angle handles routing situations where a straight fitting just won't clear. Carbon steel construction, so it holds up in regular automotive and industrial refrigeration service work.
