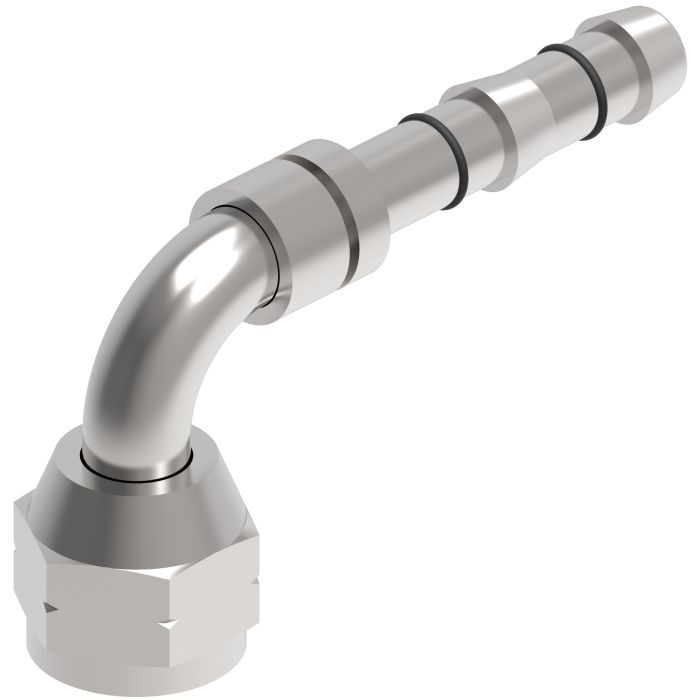

Aeroquip EZ CLIP 90Deg FEM SAE45 FTG

Ask A Question

Description & Features

This Aeroquip EZ CLIP 90Deg FEM SAE45 FTG is suitable for a wide range of applications. This fitting assembly offers a durable and dependable connection, cutting assembly times and boosting production. It features a female SAE 45 end type and is constructed from carbon steel.

The fitting has a 0.625-inch end size and a -8 hose dash size. This Aeroquip fitting assembly is part of the E-Z Clip System for A/C Refrigeration.

SKU: FJ3149-02-0608S

Supplier Part Number (MPN): FJ3149-02-0608S

Alternate Part Numbers: C1EY68, MI-04981689, MINO-00015F09367

Specifications

Brand
Danfoss
a Dimensions
2.52 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Flare Swivel
Construction Style
Reusable
Cut-Off Factor
0.98 in
Dimensions
2.89 in L x 0.75 in W x 1.55 in H
Drop Dimensions
0.85 in
End Gender 1
Female
End Size 1
5/8 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
E-Z Clip System A/C Refrigeration GH134 Series Hoses
Hex Size
3/4 in
Hose Dash Size
08
Inside Diameter
0.31 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
HNBR
Segment Code
C
Series
FJ3149 Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (2)

Question by: Dean C on Jan 22, 2026, 5:48 PM
what system is this fitting actually built for, A/C refrigeration or general hydraulics?
Answer by: Customer Support on Jan 24, 2026, 6:28 AM
Built specifically for the E-Z Clip System used in A/C refrigeration applications. The female SAE 45 end type and -8 hose dash size are sized and configured for that system, so it's not a general-purpose hydraulic fitting.
Question by: Duane M on Oct 11, 2025, 4:18 PM
trying to swap out a fitting, is this one the 90 degree female SAE 45 with a -8 hose size?
Answer by: Customer Support on Oct 13, 2025, 6:14 AM
You are looking at a 90 degree fitting assembly with a female SAE 45 end, sized at 0.625 inch on the end, and it matches a -8 hose dash size.
